UCFIBRE™® SM Series Simplex LSZH
SM Series Simplex LSZH
Overview
UCFIBRE™® SM series simplex is versatile indoor flame-rated cable providing unsurpassesed performance for network patching/configuration. Easily terminate into jumper/ pigtail cable assemblies. Suitable for data centre applicationsFeatures
- Tight buffer : Each fiber is buffered with LSZH
- Strength Member : Aramid yarn
- Outer Sheath : LSZH
| Technical Data | |||||||
|---|---|---|---|---|---|---|---|
| No. of Fibers |
1 |
||||||
| Design | Simplex | ||||||

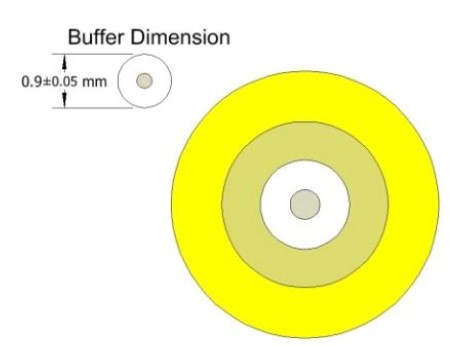

| Tight Buffer Diameter | mm | 0.6± 0.05 | 0.9± 0.05 | 0.9± 0.05 | |||
| Outer Sheath No. Thickness | mm | 0.25 | 0.35 | 0.50 | |||
| Nom. Cable Diameter | mm | 1.6 | 2.0 | 3.0 | |||
| Max. Installation Tension | N | 110 | |||||
| Min. bending radius |
|
||||||
| Temperature range | °C |
|
|||||
| Flame Retardant |
LSZH: IEC 60332-1, IEC60332-3-24 |
||||||
| Ordering Information | ||
|---|---|---|
| UCFIBRE™® SM Series Simplex FO part numbers are made up using the table below. The part number always starts with the letters SM. This is followed by 2 numbers which symbolizes the cable diameter and then 2 letters to denote the fibre type. Example of a SM part number: - SM020M3 The above example describes an OM3 (50um), Simplex Series (LSZH jacketing), with 2.0mm cable diameter. | ||
| SIMPLEX | SHEATH |
CABLE DIAMETER |
FIBRE TYPE |
| S | M | 02 | XX |
|---|---|---|---|
| LSZH | 016 - 1.6mm 018 - 1.8mm 020 - 2.0mm 024- 2.4mm | SM - SINGEMODE, G652D, 9um (yellow sheath) A2 - G657A2, 9um (yellow sheath) M1 - OM1, 62.5um (orange sheath) M2 - OM2, 50um (Orange sheath, Bendbright) M3 - OM3, 50um (Aqua sheath, Bendbright) M4 - OM4, 50um (Violet sheath, Bendbright) |
