UCFIBRE™® MT SERIES |

UCFIBRE™® MT SERIES

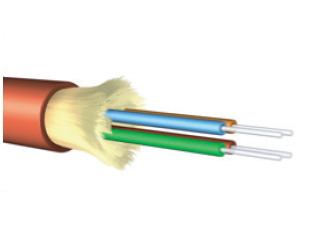

2-24 Cores, Indoor Tight Buffer Distribution Cable, LSZH Sheath

Overview

One of the most widely used UCFIBRE™ Indoor cable, MT series is excellent for indoor installation that provides a safe setup against flame propagation and its flexible yet robust construction makes installation at ease.

Additional Options

PVC Sheath for indoor applications
PE Sheath for outdoor applications
Steel Wire Braiding for armouring protection

Features

Tight buffer: Each fibre is coated to 0.9mm with LSZH
Strength Member : Aramid yarn
Outer Sheath:LSZH compliant to IEC 61034,IEC 60754-1&2,IEC 60332-1,IEC 60332-3-24 & IEC 60332-3-22
Suitable for indoor installation requiring flame retardant, low smoke and halogen free environment

Main Characteristics
Test	Standard	Value	Sanction*
Maximum installation load (a few hours)	IEC 60794-1-2-E1	1000 N (2F-8F), 1200N (12F, 24F)	Fibre strain ≤ 0.6%,Δα reversible
Short term tensile strength (some days)	IEC 60794-1-2-E1	600N	Fibre strain ≤ 0.4%,Δα reversible
Max operation tension	IEC 60794-1-2-E1	280N (2F-12F), 340N (24F)	Fibre strain ≤ 0.2%,Δα ≤0.4 db (MM), ≤0.3db (SM)
Crush (short term)	IEC 60794-1-2-E3	1000 N / 100mm	Δα ≤0.4 db (MM), ≤0.3db (SM), no damage
Temperature range	IEC 60794-1-2-F1	-20 -> +70°C	Δα ≤ 0.6 dB /km(MM), Δα ≤ 0.40dB/km (SM)

* value of multi mode fibres, all optical measurements perform at 1300nm value of single mode fibres, all optical measurements perform at 1550nm

Technical Data

No. of Fibres

2,4,6

Design

1x2,4,6 TB

1x8 TB

1x12 TB

1x24 TB

Tight buffer

0.9 ± 0.05

Cable Nom. Diameter

4.8

5.4

6.2

8.8

Cable Nom. Weight

kg/km

Min. bending radius

Without Tension 10 x Cable Ø

Under Maximum Tension 20 x Cable Ø

Temperature range

°C

Installation -10 -> +60

Transport. & Storage -40 -> +70

Operation -20 -> +70

Flame Retardant

IEC 60332-3-24

Ordering Information
UCFIBRE™® MT SERIES FO Cable part numbers are made up using the table below. The part number always starts with the letters MT to denote that it is an UCFIBRE™® MT SERIES FO cable. This is followed by 3 numbers which symbolizes the core quantity and then 2 letters yo denote the fibre type. Example of a UCFIBRE™® MT SERIES FO Cable part number: MT008M1 The above example describes an OM1(62.5Sum, Orange Sheath) UCFIBRE™® MT SERIES FO Cable, with 8 cores.

Ordering Information

UCFIBRE™® MT SERIES FO Cable part numbers are made up using the table below. The part number always starts with the letters MT to denote that it is an UCFIBRE™® MT SERIES FO cable. This is followed by 3 numbers which symbolizes the core quantity and then 2 letters yo denote the fibre type. Example of a UCFIBRE™® MT SERIES FO Cable part number: MT008M1 The above example describes an OM1(62.5Sum, Orange Sheath) UCFIBRE™® MT SERIES FO Cable, with 8 cores.

MT	XXX	XX
MT SERIES	CORE QUANTITY	FIBRE TYPE
	002 - 2 CORES 004 - 4 CORES 006 - 6 CORES 008 - 8 CORES 012 - 12 CORES	SM - SINGEMODE, G652D, 9um (yellow sheath) M1 - OM1, 62.5um (orange sheath) M2 - OM2, 50um (orange sheath) M3 - OM3, 50um (aqua sheath) M4 - OM4, 50um (violet sheath)
