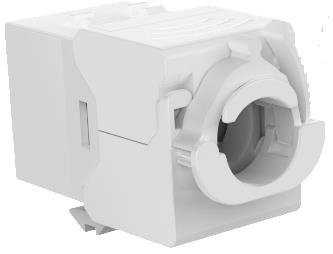

UC CONNECT® HD CATEGORY 6 KEYSTONE JACK 180 TOOL-LESS
Standards
- ANSI TIA/EIA 568-2;
- ISO/IEC 11801 2nd Ed.;
- IEC 60603-7-[4,5];
- EN 50173-1;
- EN 50173-2
Overview
- Category 6 hardware compliant performance.
- Toolless termination.
- High Density Design provides optimize usage of rack space.
- Component level tested.
- RoHS Compliant
| GENERAL SPECIFICATIONS | |
|---|---|
| Item | Description |
| Interface, Front | RJ45 |
| Interface, Rear | IDC Insulation Displacement Contact |
| Cable Type | Shielded/Unshielded Cable |
| Termination Tool | Toolless, Not required Termination tool |

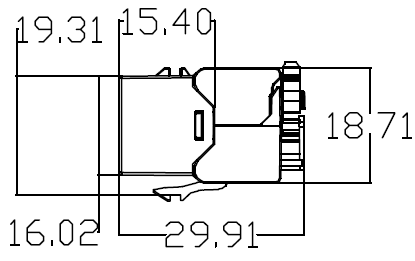

| Panel Cutout | 14.38X16.02 mm |
| MECHANICAL PROPERTIES | |
|---|---|
| Item | Description |
| Conductor Gauge | Solid 22–24 AWG; Stranded 22-26 AWG |
| IDC Termination | 110 Insulation Displacement Contact (IDC), KRONE |
| IDC Durability | 250 times re-termination |
| Plug Insertion Life | 750 Mating Cycle |
| Plug Retention Force | 79N |
| Wiring | T568A | T568B |
| Ordering Information | |||
|---|---|---|---|
| Part Number | Description | Weight | Packaging Unit |
| YMJBP02754 | Draka UCCONNECT HD CAT6 Unshielded Keystone Jack 180° Tool-Less, Black | 6g | 24 per box |
| YMJBP02755 | Draka UCCONNECT HD CAT6 Unshielded Keystone Jack 180° Tool-Less, White | 6g | 24 per box |
| YMJBP02756 | Draka UCCONNECT HD CAT6 Unshielded Keystone Jack 180° Tool-Less, Blue | 6g | 24 per box |
| YMJBP02757 | Draka UCCONNECT HD CAT6 Unshielded Keystone Jack 180° Tool-Less, Yellow | 6g | 24 per box |
| YMJBP02758 | Draka UCCONNECT HD CAT6 Unshielded Keystone Jack 180° Tool-Less, Red | 6g | 24 per box |
| YMJBP02759 | Draka UCCONNECT HD CAT6 Shielded Keystone Jack 180° Tool-Less, Metallic | 14g | 24 per box |
