SMPTE 311M-HD-Hybrid-Camera Cable
Hybrid-HDTV-Camera Cable
| Construction | |
|---|---|
| Element 1: Auxiliary Conductors AWG20 (4 x 0.6 mm2) | |
| Conductor | tinned stranded copper wires, 19 x 0.20 mm, diameter 1.0 mm |
| Insulation | HDPE, diameter 1.5 mm |
| Identification | 2 x black, 2 x white |
| Element 2: Signal Conductors AWG24 (2 x 0.22 mm2) | |
| Conductor | tinned stranded copper wires, 7 x 0.20 mm, diameter 0.6 mm |
| Insulation | HDPE, diameter 1.1 mm |
| Identification | 1 x red, 1 x grey |
| Element 3: Fibre Optic Single Mode (2 x 9/125μ) | |
| Mode field diameter | at 1310 nm, diameter 9.5 μm ± 1 μm |
| Cladding diameter | diameter 125 μm ± 1 μm |
| Concentricity error | ≤ 1 μm |
| Coating material | UV-cross-linked Acrylate, diameter 245 μm |
| Buffer material | Thermoplastic, diameter 0.9 μm ± 0.05 μm |
| Identification | 1 x blue, 1x yellow |
| Element 4: Strength Member AWG16 (1 x 1.22 mm2) | |
| Conductor | galvanized steel wires, diameter 1.6 mm |
| Insulation | HDPE, diameter 2.1 mm |
| Identification | 1 x white |
| Cable lay up | |
| Stranding | Core: 1 x Element 4, diameter 2.1 mm |
| Layer: 4 x Element 1 + 2 x Element 2 + 2 x Element 3 and in the | |
| outer interstices 4 x fibrillated Polypropylene as needed for | |
| roundness, diameter 5.2 mm | |

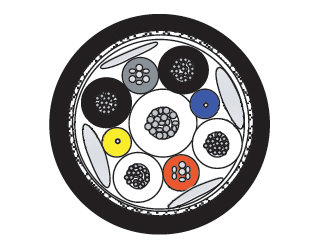

| Sequence according to the above drawing | |
| Wrapping | 1 x non-woven fabric tape, diameter 5.4 mm |
| Screen | Copper wire braid, tinned 95% opt. coverage, diameter 5.9 mm |
| Sheath | PUR or LSZH, diameter 9.2 mm |
| black, RAL 9005 | |
| Weight | Nom. 115 kg/km |
| Tensile force N | Nom. 800 |
| Mechanical Properties at 20°C | ||
|---|---|---|
| Temperature range PUR (LSZH) | during operation | - 40° C to + 70° C ( -25°C to +70°C) |
| Max. humidity | - | 95 % |
Application
- TThis Hybrid HD Camera Cable 2SM 9/125 + 4 x AWG20 + 2 x AWG24 acc. to SMPTE 311M-Standard contains Single-Mode Optical Fibres, Auxiliary- and Signal Conductors. It is used in professional video productions for simultaneous transmission of energy, video, audio and control signals and is intended to interconnect Camera Units and Base Stations in conjunction with the Connector Interface Standard. It is suitable for all new digital camera systems of well-known manufacturers.
Standards
- SMPTE 311M
Fire Rating
- IEC 60332-1, IEC 60754-2, IEC 61034
| Electrical Properties at 20°C | ||
|---|---|---|
| Auxiliary Conductors AWG20 (4 x 0.6 mm2) | ||
| DC resistance | - | ≤ 35.3 Ω/km |
| Loop resistance | - | ≤ 43 Ω/km |
| Insulation resistance | - | ≥ 104 MΩ*km |
| Test voltage | - | 1750 VAC rms |
| Operating voltage | - | ≤ 300 VAC rms |
| Signal Conductors AWG24 (2 x 0.22 mm2) | ||
| DC resistance | - | ≤ 97.5 Ω/km |
| Loop resistance | - | ≤ 184 Ω/km |
| Insulation resistance | – | ≥ 104 MΩ*km |
| Test voltage | – | 1750 VAC rms |
| Operating voltage | – | ≤ 300 VAC rms |
| Overall screen | ||
| DC resistance | – | ≤ 20 Ω/km |
| Optical Properties | ||
|---|---|---|
| Fibre Optic Single Mode (2 x 9/125μ) | ||
| Cut-off wavelength | - | 1100 – 1350 nm |
| Attenuation | at 1310 nm | 0.5 dB |
| Dispersion | at 1310 nm | 3.5 ps/nm*km |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1002458 CT2987000 glossy | SMPTE 311M Hybrid Camera Cable, Hybrid-HDTV-Camera Cable, SMPTE 311M-HD-Hybrid-Camera Cable | 1000m/drum | |
| 1008069 CT2987002 dull | SMPTE 311M Hybrid Camera Cable, Hybrid-HDTV-Camera Cable, SMPTE 311M-HD-Hybrid-Camera Cable | 1000m/drum | |
| 1018337 CT7687000 | SMPTE 311M Hybrid Camera Cable LSZH, Hybrid-HDTV-Camera Cable, SMPTE 311M-HD-Hybrid-Camera Cable | 1000m/drum | |
