Draka UC500 Cat.6a U/UTP UNSHIELDED 23AWG LSZH
Premium, Solid, 23AWG, UUTP Unshielded
Application
- Generic cabling systems
- Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
- IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10G Base-T
- IEEE 802.5 16 MB; ISDN; TPDDI; ATM
- IEEE 802.3af (PoE); IEEE 802.3a(PoE+); IEEE802.3bt (PoE++)
Standards
- ANSI TIA / EIA 568.2-D
- ISO/IEC 11801-1/2
- IEC 61156-5
- EN 50173-1
- EN 50288-10-1
Flame Rating
- LSZH: IEC 60332-1-2; IEC 60332-3-22; IEC 60754-1&2; IEC 61034-2
|

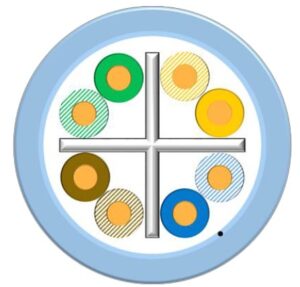

Construction
|
|
|---|---|
| Conductor | Bare copper wire ∅ 0.56 mm (AWG23) |
| Insulation | PE/Foam PE , Nom. ∅ 1.15 mm |
| Sheath | LSZH |
| Sheath colour | BLUE |
| Overall Screen | PE Mylar and Single PET AL-Foil (without Drain Wire) |
| Outer Diameter | Nom. 7.1 mm |
| Weight | Nom. 56 kg /km |
|
Mechanical properties
|
|
|---|---|
| Minimum bending radius without load | ≥ 8 x O.D |
| Minimum bending radius with load | ≥ 8 x O.D |
| Temperature range during Operation | -20°C to +60°C |
| Temperature range during Installation | 0°C to +50°C |
| Maximum Pulling Force during Installation | 110N |
|
Electrical properties at 20°C
|
|
|---|---|
| DC Resistance | ≤ 9.38 Ω / 100m |
| DC Loop Resistance | ≤ 187.6 Ω /km |
| DC Resistance unbalance | ≤ 4 % |
| Mutual Capacitance at 1 kHz | 5.6 nF /100m |
| Capacitance unbalance (pair to ground) | ≤ 330 pF /100m |
| Characteristic impedance 1- 100 MHz | 100 ± 15 Ω |
| Nominal velocity of propagation | Nom. 75 % |
| Propagation delay (@250MHz) | ≤ 536 ns /100m |
| Delay skew | ≤ 45 ns /100m |
| Ordering Information | |||
|---|---|---|---|
| SAP IC | UC P/N | Product Description | P.U |
| TBC | 80345BL-5H | Draka UCDATA CATEGORY CABLE UC500 CAT.6A UUTP UNSHIELDED 4PAIR 23AWG LSZH BLUE | 500m/reel |
