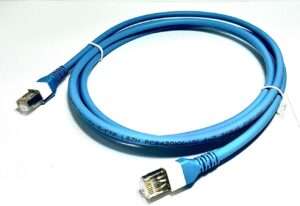

Draka UC Dual Boot CAT.6A SFTP Copper Patch Cord
Cat.6a S/FTP 26AWG 500 MHz, Stranded
Standards
- ANSI TIA/EIA 568.2-D ; ISO/IEC 11801-1/2 ; EN 50173 ; IEC 61935 ;IEC 60603-7
Flame & LSZH Rating
- IEC60332-1 ; IEC 60754-1&2; IEC 61034-2
| GENERAL SPECIFICATIONS | |
|---|---|
| Item | Description |
| Size | 26 AWG |
| Type | Stranded Bare Copper |
| Insulation | FOAM PE |
| Individual Shield | Aluminum Polyester Tape |
| Overall Shield | Tinned Copper Wire Braiding |
| Jacket | LSZH, ø 6.4mm |
| ASSEMBLY PROPERTIES | |
|---|---|
| Item | Description |
| RJ45 Modular Plug | 50µm gold plated contact |
| Termination Coding | TIA 568-B |
| Plug Housing | UL94V-0 rated clear polycarbonate |
| Boot | Unique dual boot design |

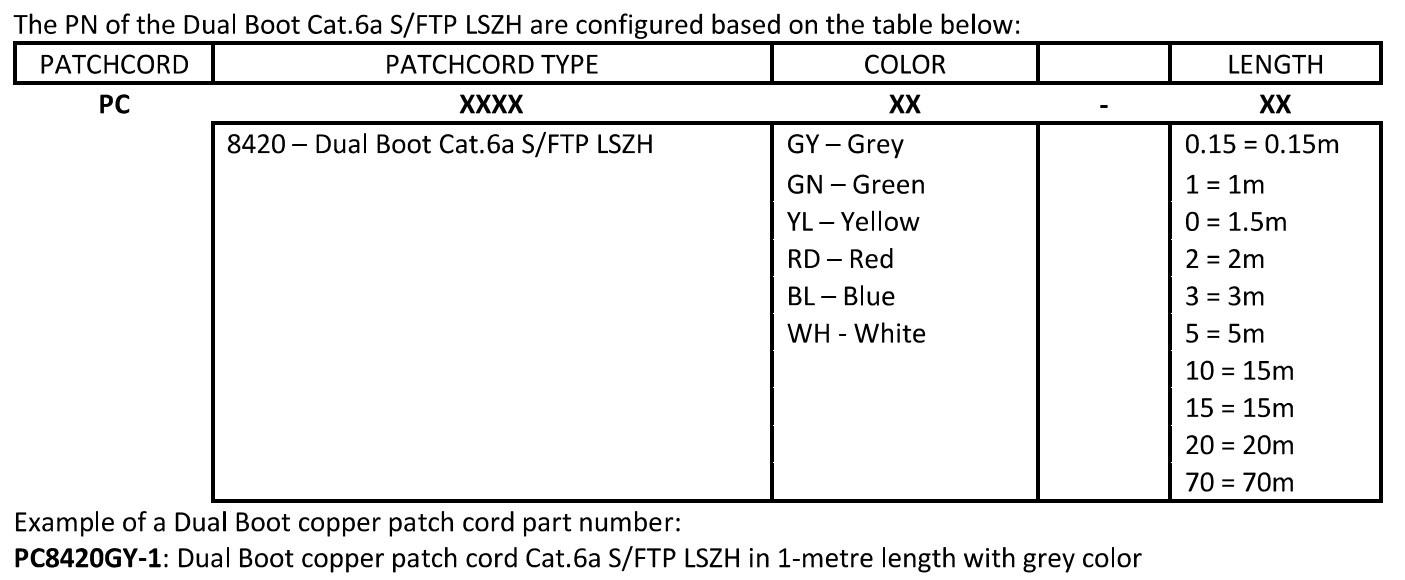

| Ordering Information | |||
|---|---|---|---|
| Part Number | Description | Weight | Packaging Unit |
| PC8420GN-1 | Draka UCCONNECT CAT.6a DBOOT PATCH CORD SFTP LSZH 26AWG 1M GREEN | 31.7g | 1pc/bag |
| PC8420BL-2 | Draka UCCONNECT CAT.6a DBOOT PATCH CORD SFTP LSZH 26AWG 2M BLUE | 63.4g | 1pc/bag |
| PC8420WH-3 | Draka UCCONNECT CAT.6a DBOOT PATCH CORD SFTP LSZH 26AWG 3M WHITE | 95.1g | 1pc/bag |
