UCCONNECT® 6-Port Auto Shuttle LC Quadruplex Front Panel

Features

  • SPCC Steel (Cold Rolled Steel Plate), Thickness 1.2mm
  • Finger Print Resistance
  • Available in pre-assembled form
  • Compatible with UC9515 Patch Panel
  • Coupler Sleeve: Zirconia



Ordering Information
UC P/N Product Description P.U Weight (g)

PPA9524-6LCSM Draka UCCONNECT® UC9500 1 Slot 6-Port LC Quadruplex Front Panel with 6 SM Auto Shuttle Adaptors 6 pcs per box 52
PPA9524-6LCM4 Draka UCCONNECT® UC9500 1 Slot 6-Port LC Quadruplex Front Panel with 6 OM4 Auto Shuttle Adaptors 6 pcs per box 52




UCCONNECT® UC 1RU Patch Panel 9515, Drawer Type,Empty

UC9515 1RU Drawer Type Patch Panel, Empty

Features

  • Light Weight
  • Drawer for easy installation and maintenance
  • Highly durable
  • Easy fix-up to 4 module cassettes and 4 adaptor panels
  • Abrasion Resistance
  • Up to 96 fibres



Application

UC9515 are used to house and organize the trunk fiber optic cable, compatible with MPO-LC Cassettes, fiber adaptor panels and patch cords. Sliding version has better easy access from front and rear, panels has 4 slots, which can install 4 adaptor panels and 4 module cassettes, including LC adaptor.


Construction
Material SPCC (Cold Rolled Steel Plate)
Matrix Thickness 1.2mm
Cover Thickness 1.2mm
Dimension H x W x D = 1RU x 482mm x 361mm
Surface Finishing Powder Coating
Weight   Approximate 4kg (empty)

Ordering Information
UC P/N Product Description P.U Weight (g)
PP9515 Draka UCCONNECT® Fibre Optic Patch Panel Drawer Type 19″ 1U
4 Slot Empty Black UC9500 Series 		 1pc 4000

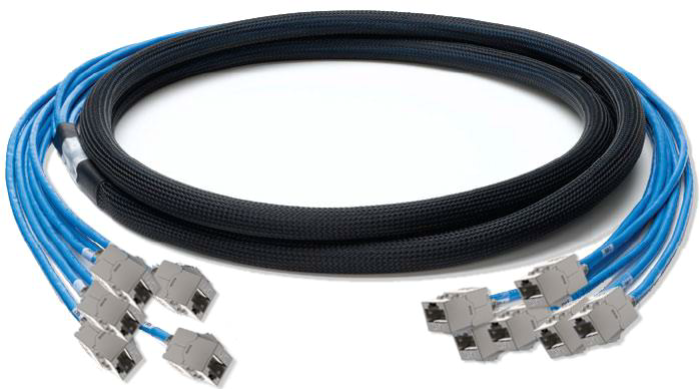

Draka Pre-Terminate Copper Cable Assembly

Features

Draka UC Pre-Terminated cable assemblies are the ideal solution for data centers where speed of installation is important. Factory termination and testing simplify installation, saving time and labor as compared to field terminated installation reduce installation time by up to 75%. Configured pre-terminate custom lengths with RJ-45 modular jack to RJ-45 modular jack, RJ-45 modular Jack to RJ-45 modular Plug, or RJ-45 modular jack to open end cable are flexible to meet the specific needs of each application. A braided sleeve bundles individual cables into a bundle trunk assembly

Application

  • Generic cabling systems
  • Permanent Link Horizontal connection between rack
  • IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T
  • IEEE 802.5 16 MB; ISDN; TPDDI; ATM 155Mb/s, ATM 622Mb/s, ATM 1.2Gb/s
  • IEEE 802.3af (PoE); IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE)

Standards

ANSI EIA/TIA 568-2.D | TIA 942-B | ISO/IEC 11801 (1-6):2017 | IEC 61156-5 2nd Ed | EN 50173-1 | EN 50288

Performance Characteristics

Meet or Exceed TIA/EIA-568-2.D Category 6 and ISO/IEC 11801 Class ECat6 pre-term performance

  • Note1: All tests include 401 points swept frequency measurements
  • Note2: All electrical characteristics are given at 20℃
  • Note3: All above stated values are nominal and subject to changes
  • Note4: Transmission performance based on 100 m (328 ft)

Fire Rating Performance

PVC IEC 60332-1
LSZH IEC 60332-1; IEC 60754-1 & -2; IEC 61034

Compliant

RoHS Compliant | IEC 60603-7 | IEC 60512 | FCC Part 68 SUBPART F

Ordering Information



UC P/N  Description Packaging
P60088GY-XXYYMM UC 400 Pre-Terminate Cat 6 U/UTP 23 AWG, PVC, Gray, MM meter 1 / bag
P60088BL-XXYYMM UC 400 Pre-Terminate Cat 6 U/UTP 23 AWG, PVC, Blue, MM meter 1 / bag
P60075GY-XXYYMM UC 400 Pre-Terminate Cat 6 U/UTP 23 AWG, LSZH, Gray, MM meter 1 / bag
P60075BL-XXYYMM UC 400 Pre-Terminate Cat 6 U/UTP 23 AWG, LSZH, Blue, MM meter 1 / bag



FEEDER CABLE RFA 1/4″-50 Ohm

Feeder

Specifications

Codes
Type Code
RFA 1/4”-50 NKRFA01400
RFA 1/4”-50 GHF NKRFA01401
RFA 1/4”-50 BHF NKRFA01402
RFA 1/4”-50 BHF (UL) CATVR NKRFA01404
CONSTRUCTION
Inner conductor Copper-clad aluminium wire Ø 2.4 mm (0.09 in)
Dielectric Cellular polyethylene Ø 6.0 mm (0.24 in)
Outer conductor Corrugated copper tube Ø 7.5 mm (0.3 in)
Jacket See Jacketing Options table below Ø 10.0 mm (0.39 in)
Marking Draka, cable type, manufacture week,year, batch number and meter mark
ELECTRICAL CHARACTERISTICS at +20°C (+68ºF)
Characteristic impedance 50 ± 1 Ω
Return loss 24 dB for 100 m cable with NKC connectors
• 380–500 MHzM
• 806–960 MHz
• 1710–1880 MHz
• 1900–2170 MHz
Other bands also available on request
Bands according to customer’s specifications
Attenuation See table
Velocity factor 0.83
Capacitance 80 pF/m (24 pF/ft)
Maximum frequency 16 GHz
Max power rating See table
Peak RF voltage rating 1.04 kV
Peak power rating 11.6 kW
DC-resistance
• Inner conductor 5.55 Ω/km (1.69 Ω/1000 ft)
• Outer conductor 4.11 Ω/km (1.25 Ω/1000 ft)
JACKETING OPTIONS
Type Jacket IEC 60754 -1/-2 halogen free, non corrosive IEC 61034 low smoke emission IEC 60332-3-24 fire retardant UV Retardancy UL Rated Min. installation temperature
RFA 1/4”-50 Black, halogen free polyethylene yes no no yes no -40°C(-40°F)
RFA 1/4”-50 GHF

 Grey, halogen free retardant thermoplastic fire yes yes yes no no -20°C(-4°F)
RFA 1/4”-50BHF Black, halogen free fire retardant thermoplastic yes yes yes yes no -20°C(-4°F)
RFA 1/4”-50 BHF (UL) CATVR Black, halogen free fire retardant UL Riser rated jacket yes yes yes yes yes -20°C(-4°F)
ATTENUATION
Frequency MHz Attenuation dB/100 m Attenuation dB/100 ft Power rating kW
10 1.31 0.399 5.5
30 2.28 0.694 3.2
50 2.95 0.899 2.5
88 3.93 1.20 1.8
100 4.19 1.28 1.7
108 4.36 1.33 1.7
150 5.16 1.57 1.4
174 5.56 1.70 1.3
200 5.98 1.82 1.2
300 7.36 2.24 1.0
400 8.54 2.60 0.85
450 9.08 2.77 0.80
500 9.59 2.92 0.75
512 9.71 2.96 0.74
600 10.5 3.21 0.69
700 11.4 3.48 0.63
800 12.3 3.74 0.59
850 12.7 3.86 0.57
890 13.0 3.95 0.56
900 13.0 3.98 0.55
950 13.4 4.09 0.54
960 13.5 4.11 0.54
1000 13.8 4.20 0.52
1200 15.2 4.63 0.48
1400 16.5 5.02 0.44
1600 17.7 5.39 0.41
1800 18.8 5.75 0.38
1900 19.4 5.91 0.37
2000 19.9 6.08 0.36
2200 21.0 6.40 0.34
2400 22.0 6.71 0.33
2600 23.0 7.01 0.32
2800 23.9 7.30 0.30
3000 24.9 7.58 0.29
3400 26.6 8.11 0.27
6000 36.5 11.1 0.20
8000 43.0 13.1 0.17
10000 48.9 14.9 0.15
12000 54.3 16.6 0.14
16000 64.4 19.6 0.11

Attenuation values are typical at ambient temperature +20ºC (+68ºF). Power rating ambient temperature +40ºC (+104ºF), inner conductor +100ºC (+212ºF).

MECHANICAL CHARACTERISTICS
Weight 0.12 kg/m (0.08 lb/ft)
Maximum pulling force 790 N (177 lb)
Minimum bending radius
• Single bending 40 mm (1.6 in)
• Repeated bending 100 mm (3.9 in)
Operating temperature range -55…+80°C (-67…+176ºF)
Crush resistance 1.9 kg/mm (106 lb/in)
Bending moment 1.8 Nm (1.3 lb-ft)
Recommended clamp spacing 0.6 m (2 ft)
STANDARD DRUM
Cable type Drum Standard length m (ft) Outer diam.(D) cm (in) Outer width cm (in) Drum weight (W) kg (lb) Total weight (empty) kg (lb) Drum freight volume m3(cu.ft)
RFA 1/4” P6D 500 (1640) 63 (25) 51 (20) 13 (29) 83 (183) 0.20 (7.06)
CODES FOR NKC CONNECTORS
Connector type Code
N male NKC1014300
N female NKC1014400
7-16 male NKC1014100
N male Right angle NKC1014600

UCFIBRE® MTC SERIES

36 & 48 Cores, COMPACT Indoor Tight Buffer Distribution Cable, LSZH

Overview

Compact design version of MT Series with reduced overall diameter for easier installation and space limitation environment.

Aditional Option

  • PVC Sheath
  • PE Sheath for outdoor applications
  • Steel Wire Braidling for armouring protection

Features

  • Tight buffer: Each fibre is coated to 0.9mm with LSZH
  • Strength Member: Aramid yarn
  • Core Wrapping: Polyester tape
  • Outer Sheath: LSZH compliant to IEC 61034, IEC 60754 – 1&2, IEC 60332 -1& 60332 –3- 24
  • Suitable for Indoor Flame Retardant Environment.
  • Up to 40% more compact & lighter than standard indoor types but with lesser tensile load.
Main Characteristics
Test Standard Value Sanction*
Maximum installation load (a few hours) IEC 60794-1-2-E1 1300 N (36F,48F) Fibre strain, ≤ 0.6%,∆α reversible
Short term tensile strength. (some days) IEC 60794-1-2-E1 1300 N (36F,48F) Fibre strain, ≤ 0.4%,∆α reversible
Max operation tension IEC 60794-1-2-E1 400 N (36F, 48F) Fibre strain, ≤ 0.2%,∆α≤ 0.4 db(MM), ≤0.30(SM)
Crush (short term) IEC 60794-1-2-E3 1000N/100mm ∆α ≤ 0.4 dB(MM), ≤0.30(SM), no damage
Temperature range IEC 60794-1-2-F1 -20->+70◦C ∆α≤ 0.6 dB/km(MM), ≤0.30 db/km(SM)

* Values for multi-mode fibres, all optical measurements performed at 1300 nm

Values for single-mode fibres, all optical measurements performed at 1550 nm

Technical Data:
No. of fibres  36 48
Design 6×6 TB 4×12 TB
Tight buffer Size mm 0.9±0.05 0.9±0.05
Outer sheath thickness mm 1.2 nominal 1.2 nominal
Cable Outer Diameter mm 11.0±1.5 12±1.5
Cable Weight mm 100 140
Min. bending radius Kg/km Without Tension
10×Cable-Ф		 Under Maximum Tension 20×Cable-Ф
Temperature range â—¦C
Installation
-10 – > + 60;		 Transport & Storage
-40 – > + 70;		 Operation -20->+70
Flame Retardant IEC 60332 – 3 -24(3C)
Ordering Information
UCFIBREâ„¢ MTC SERIES FO Cable part numbers are made up using the table below.

The part number always starts with the letters MTC to denote that it is a UCFIBREâ„¢ MTC SERIES FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type.

Example of a UCFIBREâ„¢ MTC SERIES FO Cable part number:

MTC048M4

The above example describes an OM4 (50um, Aqua Sheath) UCFIBREâ„¢ MTC SERIES FO Cable, with 48 cores.

MTC SERIES CORE QUANTITY FIBRE TYPE
MTC XXX XX
036 – 36 CORES

048 – 48 CORES



 SM – SINGEMODE, G652D, 9um (yellow sheath)

M1 – OM1, 62.5um (orange sheath)

M2 – OM2, 50um (orange sheath)

M3 – OM3, 50um (aqua sheath)

M4 – OM4, 50um (aqua sheath)

UC Future C22 Cat8.2 S/FTP 4PR LSZH

Standard, Solid, LSZH, 22AWG, Screened.

Construction
Conductor Bare copper wire, Nom. ø 0.64 mm (AWG22)
Insulation Foam-Skin PE
Twisting 2 cores to the pair
Cable lay up 4 pairs
Pair Screen Al-laminated Plastic Foil around each pair
Overall screen Tinned Copper Braid
Sheath LSZH
Outer diameter Nom. 8.5 mm
Mechanical properties
Bending radius Installation ≥ 8 X OD
Installed ≥ 4 X OD
Temperature range During operation -20°C to + 60°C
During installation   0°C to + 50°C
Electrical properties
DC loop resistance  110 Ω
Insulation resistance (500 V) ≥ 5000 MΩ.km
Nominal Mutual Capacitance Nom. 43 pF/m
Mean Characteristic Impedance @ 100 MHz 100 Ω
Nominal velocity of propagation Nom. 79%
Max. Delay skew 12 ns/100 m
Transfer Impedance At 1 MHz 5 mΩ/m
Coupling Attenuation 85 dB
Attenuation @ 2000 Mhz 78.1 dB
NEXT @ 2000 Mhz 75.0 dB
PS-NEXT @ 2000 Mhz 72.0 dB

Application

  • Primary (Campus)
  • Secondary (Riser)
  • Tertiary (Horizontal)
  • IEEE 802.3: 10Base-T, 100Base-T,1000Base-T, 10GBase-T; 40GBase-T ,ISDN, TPDDI, ATM, CATV,Breitband-Video, SOHO-Cabling
  • Power over Ethernet PoE/PoE+
  • IEEE 802.3af and IEEE 802.3at

Standards

  • ISO / IEC 11801 2nd Ed
  • IEC 61156-5 2nd Ed

Flame Retardant

  • LSHF-FR IEC 60332-1-2; IEC 60332-3-24
Ordering Information
SAP IC Product Description P.U
60030331 UC FUTURE COMPACT22 Cat.8.2 S/FTP 4P LSHF-FR Dca 500m/reel

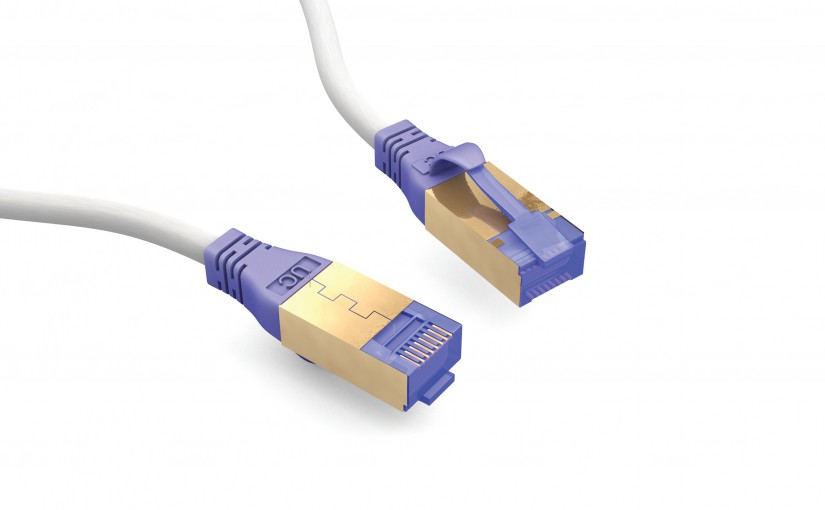

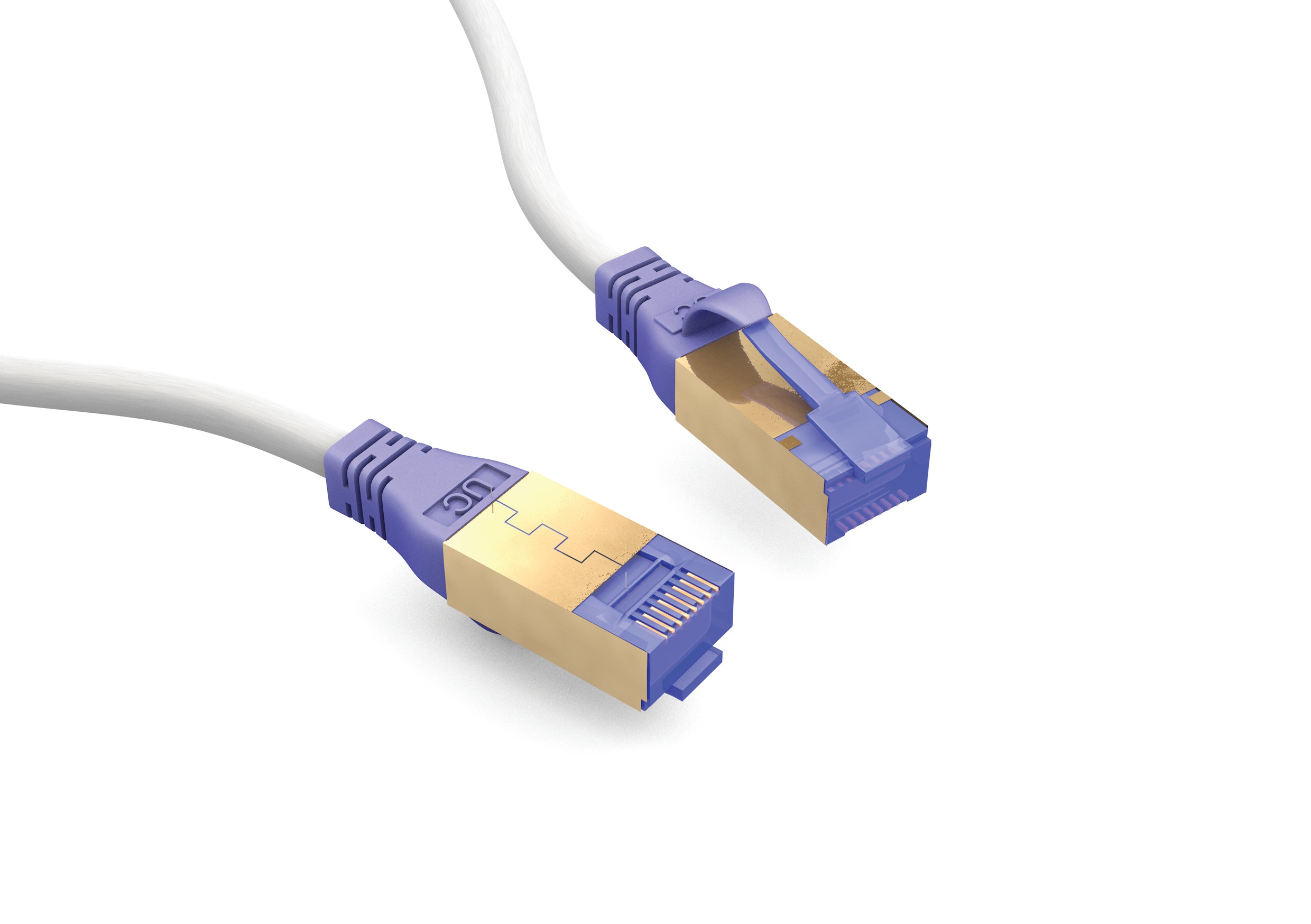

UC Copper Patch-Cord GOLD

Premium, Stranded, LSZH

Features

  • Gold Plated Housing: To further minimise oxidation and rust
  • Fully Sealed Plug: Ensure high accuracy contacts are maintained throughout instal lation
    and operation
  • Gold Plated Contacts: 50um to maximise connections
  • Unique Boot Design: Prevents entanglement during re-insertions
  • Connector is RJ45 modular plug: clear polycarbonate UL94V-0 rated
Specification
Product Family Related Cable Description
UC C300 Class D Channel, screened Cat 5e F/UTP 26/7 AWG 4P patch cable LSZH
UC C400 Class E Channel, screened Cat 6 S/FTP 27/7 AWG 4P patch cable LSZH
UC C400 Class E Channel, unscreened Cat 6 U/UTP 24/7 AWG 4P patch cable LSZH
UC C500 Class Ea Channel, screened Cat 6a S/FTP 27/7 AWG 4P patch cable LSZH
Performance
Item Description
Flame properties – LSZH IEC 60332-1, IEC 61034, IEC 60754-1 & 2
Standards EN 50173 / 50288, ISO / IEC 11801 Amendment 2,
IEC 60603-7
Length 1m, 1.5m, 3m, 5m, other lengths upon request

Premium flexible patch cables with
unique gold plating design

  • Flexible stranded bare copper conductor
    patch cable
  • 2xRJ45 connector (TIA568-B coding)
  • Color clips or different jacket color options
  • Proven performance
  • Available in PVC or LSHF
  • Component level tested

  • Color clips for colour identification available
Ordering Information
SAP IC UC P/N UC Material Code Product Description P.U
YPGBP00474 PG9561GY-1 UC C300 PG S GY L 00100 V2 F/UTP Cat.5E GOLD Patch cord Grey LSZH 26AWG 1M 1pc/bag
YPGBP00454 PG9713GY-1 UC C400 PG SF GY L 00100 V2 S/FTP Cat.6 GOLD Patch cord Grey LSZH 27AWG 1M 1pc/bag
YPGBP00434 PG9705GY-1 UC C400 PG UU GY L 00100 V2 U/UTP Cat6 GOLD Patch cord Grey LSZH 24AWG 1M 1pc/bag
YPGBP00414 PG9205GY-1 UC C500 PG SF GY L 00100 V2 S/FTP Cat.6A GOLD Patch cord Grey LSZH 27AWG 1M 1pc/bag

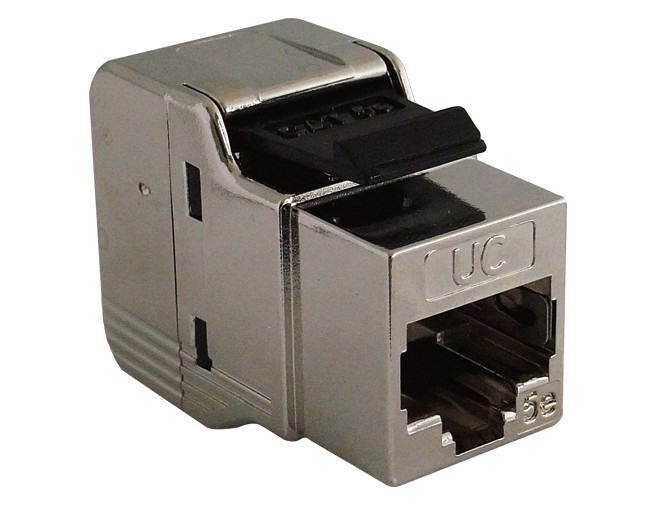

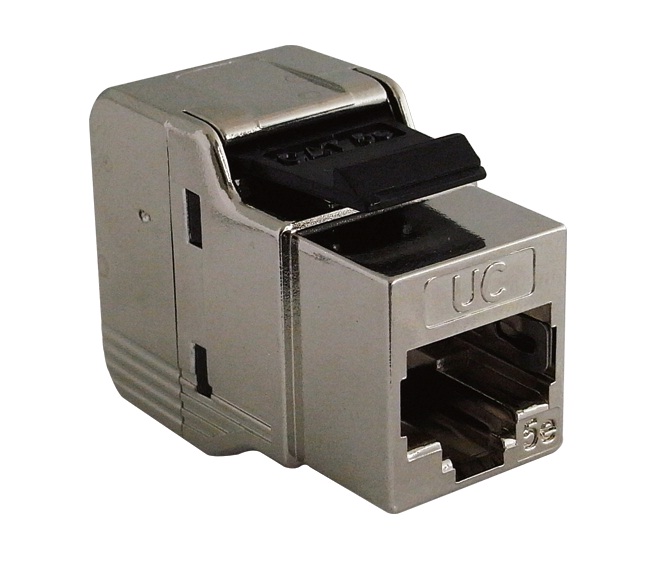

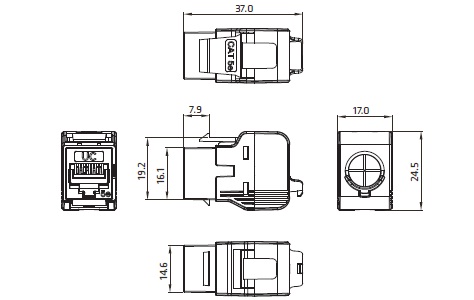

UC C300 MJ TS S

Keystone Jack,Cat.5e,RJ45,FTP, 180°, Tool Fast, Shielded

Specification
Item Description
RJ45 Housing Metalized ABS
Contacts and IDC Phosphor bronze
Contact Surface Finish 50u” gold plated over contact area
IDC Surface Finish Tin plated
IDC Housing PC, UL94V0
PCB FR4 94V0
Performance
Item Description
Wiring TIA 568 A/B
Insertion Force <=30N
Plug Insertion Life 800 times insertion (RJ45)
Re-Termination 10 Cycles
Wire Size Capability 24 ~ 26 AWG solid wire

  • Category 5e hardware compliant
    performance.
  • ToolFast Technology, reduces up to
    40% termination time.
  • High Density Design provides
    optimize usage of rack space.
  • Requires ToolFast P/N CJ9240.
  • Component level tested.
  • RoHS Compliant

Standards

  • ANSI TIA/EIA 568-2;
  • ISO/IEC 11801 2nd Ed.;
  • IEC 60603-7-[4,5];
  • EN 50173-1;
  • EN 50173-2
Ordering Information
SAP IC UCÂ P/N UC Material Code Product Description P.U
YMJBP00336 MJTR9661 UC C300 MJ TS S Keystone Jack,Cat.5e,RJ45,FTP, 180°, Tool Fast, Shielded 1pc/bag
