DRAKA UC DUAL BOOT CAT.6A UFTP (Unshielded) COPPER PATCH CORD

Cat.6a U/FTP Unshielded 26AWG 500 MHz, Stranded

Standards

  • ANSI TIA/EIA 568.2-D ; ISO/IEC 11801-1/2 ; EN 50173 ; IEC 61935 ;IEC 60603-7



GENERAL SPECIFICATIONS
Item Description
Size 26 AWG
Type Stranded Bare Copper
Insulation Foam PE
Jacket  LSZH, ø 6.0mm
ASSEMBLY PROPERTIES
Item Description
RJ45 Modular Plug 50µm gold plated contact
Termination Coding TIA 568-B
Plug Housing  UL94V-0 rated clear polycarbonate
Boot Unique dual boot design
Ordering Information
Part Number Description Weight Packaging Unit
PC8720GY-1  Draka UCCONNECT CAT.6a DBOOT PATCH CORD UFTP Unshielded LSZH 26AWG 1M GREY 31.7g 1pc/bag
PC8720GY-2 Draka UCCONNECT CAT.6a DBOOT PATCH CORD UFTP Unshielded LSZH 26AWG 2M GREY 63.4g 1pc/bag
PC8720GY-3 Draka UCCONNECT CAT.6a DBOOT PATCH CORD UFTP Unshielded LSZH 26AWG 3M GREY 95.1g 1pc/bag

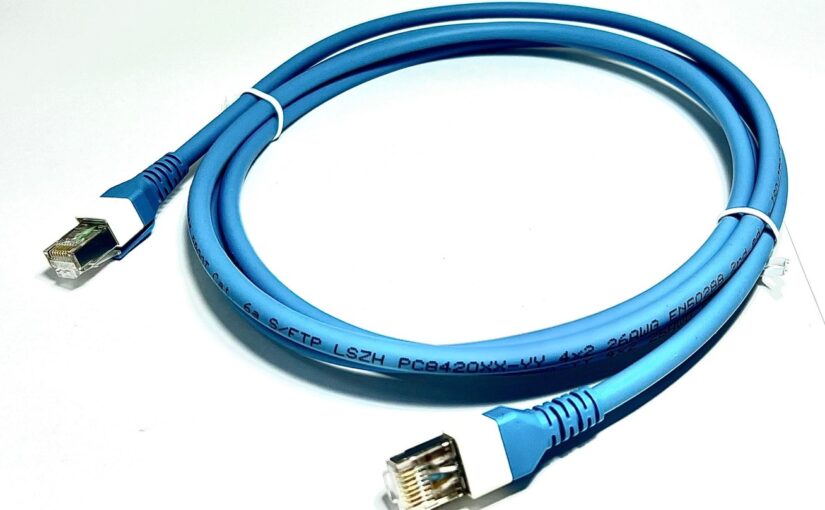

Draka UC Dual Boot CAT.6A SFTP Copper Patch Cord

Cat.6a S/FTP 26AWG 500 MHz, Stranded

Standards

  • ANSI TIA/EIA 568.2-D ; ISO/IEC 11801-1/2 ; EN 50173 ; IEC 61935 ;IEC 60603-7

Flame & LSZH Rating

  • IEC60332-1 ; IEC 60754-1&2; IEC 61034-2
GENERAL SPECIFICATIONS
Item Description
Size 26 AWG
Type Stranded Bare Copper
Insulation FOAM PE
Individual Shield Aluminum Polyester Tape
Overall Shield Tinned Copper Wire Braiding
Jacket  LSZH, ø 6.4mm
ASSEMBLY PROPERTIES
Item Description
RJ45 Modular Plug 50µm gold plated contact
Termination Coding TIA 568-B
Plug Housing  UL94V-0 rated clear polycarbonate
Boot Unique dual boot design
Ordering Information
Part Number Description Weight Packaging Unit
PC8420GN-1  Draka UCCONNECT CAT.6a DBOOT PATCH CORD SFTP LSZH 26AWG 1M GREEN 31.7g 1pc/bag
PC8420BL-2 Draka UCCONNECT CAT.6a DBOOT PATCH CORD SFTP LSZH 26AWG 2M BLUE 63.4g 1pc/bag
PC8420WH-3 Draka UCCONNECT CAT.6a DBOOT PATCH CORD SFTP LSZH 26AWG 3M WHITE 95.1g 1pc/bag

Draka UC Dual Boot CAT.6A UUTP Copper Patch Cord

Cat.6a U/UTP 24AWG 500 MHz, Stranded

Standards

  • ANSI TIA/EIA 568.2-D ; ISO/IEC 11801-1/2 ; EN 50173 ; IEC 61935 ;IEC 60603-7

GENERAL SPECIFICATIONS
Item Description
Size 24 AWG
Type Stranded Bare Copper
Insulation PE
Jacket  LSZH, ø 5.9mm
ASSEMBLY PROPERTIES
Item Description
RJ45 Modular Plug 50µm gold plated contact
Termination Coding TIA 568-B
Plug Housing  UL94V-0 rated clear polycarbonate
Boot Unique dual boot design
Ordering Information
Part Number Description Weight Packaging Unit
PC8120GY-1  Draka UCCONNECT CAT.6a DBOOT PATCH CORD UUTP LSZH 24AWG 1M GREY 31.7g 1pc/bag
PC8120GY-2 Draka UCCONNECT CAT.6a DBOOT PATCH CORD UUTP LSZH 24AWG 2M GREY 63.4g 1pc/bag
PC8120GY-3 Draka UCCONNECT CAT.6a DBOOT PATCH CORD UUTP LSZH 24AWG 3M GREY 95.1g 1pc/bag

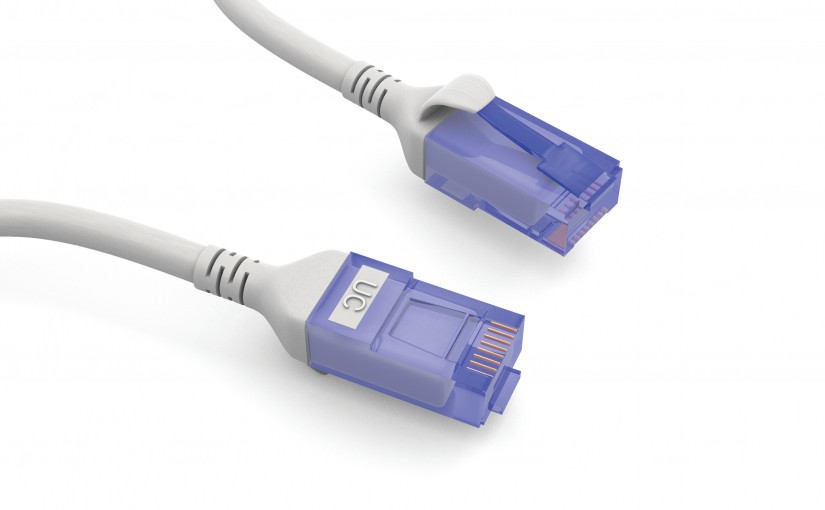

UC Copper Patch-Cord SLIMFLEX 30AWG

Slim, Stranded, LSZH

Slimmer then normal patch cables with unique flexibility

  • Lesser than 4,5mm OD
  • Flexible stranded bare copper conductor patch cable.
  • 2xRJ45 connector (TIA568-B coding)
  • Different jacket color options
  • proven performance
  • Component level tested

Standards

  • ISO/IEC 11801 2nd Ed.;
  • EN 50173;
  • ANSI TIA/EIA 568-C.2;
  • IEC 61935-2;
  • IEC 60603-7

Features

  • Slim: Unique tight extrusion for up to 30% reduction in diameter
  • Flesible: Special grade of highly durable yet flexible stranded copper
  • Gold Plated Contacts: 5Oum to maximise connections
  • Unique Boot Design: Prevents entanglement during re-insertion
Specification
Product Family Related Cable Description
UC C500 Class Ea Channel, screened Cat 6a S/FTP 30/7 AWG 4P patch cable LSZH
Performance
Item Description
Flame properties – LSZH IEC 60332-1, IEC 61034, IEC 60754-1 & 2
Standards EN 50173 / 50288, ISO / IEC 11801 Amendment 2,
IEC 60603-7
Length 1m, 1.5m, 3m, 5m, other lengths upon request
Ordering Information
SAP IC UC P/N UC Material Code Product Description P.U
YPSBP01914 PS8671WH- 1 UC C500 PS SF WH L 00100 V3 S/FTP Cat6a SLIMF Patch cord WHITE LSZH 1M, 30 AWG, SILVER Plug 1pc/bag
YPSBP01922 PS6671WH- 1 UC C500 PS SF WH L 00100 V4 S/FTP Cat6a SLIMF Patch cord WHITE LSZH 1M, 30 AWG, GOLD Plug 1pc/bag

UC Copper Patch-Cord SLIMFLEX 28AWG

Slim, Stranded, LSZH

Features

  • Slim: Unique tight extrusion for up to 30% reduction in diameter
  • Flexible: Special grade of highly durable yet flexible stranded copper
  • Gold Plated Contacts: 50um to maximise connections
  • Unique Boot Design: Prevents entanglement during re-insertion
Specification
Product Family Related Cable Description
UC C400 Class E Channel, unscreened Cat 6 U/UTP 28/7 AWG 4P patch cable LSZH
Performance
Item Description
Flame properties – LSZH IEC 60332-1, IEC 61034, IEC 60754-1 & 2
Standards EN 50173 / 50288, ISO / IEC 11801 Amendment 2,
IEC 60603-7
Length 1m, 1.5m, 3m, 5m, other lengths upon request

Slimmer then normal patch cables
with unique flexibility

  • Lesser than 4mm OD vs normal
    ~5.4mm
  • Flexible stranded bare copper
    conductor patch cable
  • 2xRJ45 connector (TIA568-B coding)
  • Different jacket color options
  • Proven performance
  • Available in PVC or LSHF
  • Component level tested

Standards

  • ISO/IEC 11801 2nd Ed.;
  • EN 50173;
  • ANSI TIA/EIA 568-C.2;
  • IEC 61935-2;
  • IEC 60603-7
Ordering Information
SAP IC UC P/N UC Material Code Product Description P.U
YPSBP00498 PS9671GY- 1 UC C400 PS UU GY L 00100 V2 U/UTP Cat6 SLIMF Patch cord Grey LSZH 1M 28 AWG 1pc/bag
