UCFIBRE™® MB SERIES

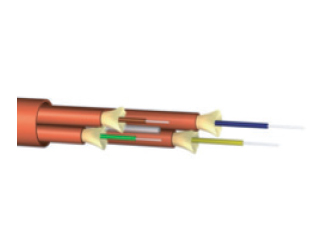

2-12 Fibres, Breakout Distribution Cable, LSZH Sheath

Features

Buffer Coating: LSZH, 0.9mm tight buffered fibre
Strength Member: Aramid yarn within each sub-unit
Sub-unit sheath: LSZH material
Central Strength Member: FRP with up-coating when needed
Outer Sheath: LSZH compliant to IEC 61034, IEC 60754-1&2, IEC 60332-1 & 60332-3-24
Tight Buffer Color: ANSI TIA/EIA 568-C.3
Sheath Color: ANSI TIA/EIA 568-C.3
Easy to strip and excellent for use in indoor installations requiring efficient terminations, and also in flame retardant, low smoke and halogen free environments.
Ripcord only when requested

Main Characteristics
Test	Standard	Value	Sanction*
Maximum Tension at installation (short term)	IEC 60794-1-2-E1	660N	Δl/l fibre ≤ 0.6%, Δα reversible
Tension operation max. (Long Term)	IEC 60794-1-2-E1	198 N	Δl/l fibre ≤ 0.2%, Δα ≤ 0.30dB (SM) / 0.40 dB (MM)
Crush	IEC 60794-1-2-E3	1000 N / 100mm	Δα ≤ 0.30dB (SM) / 0.40 dB (MM), cable integrity

* values for single-mode fibres, all optical measurements performed at 1550 nm * values for multi-mode fibres, all optical measurements performed at 1300 nm

Overview

MB Series provides easy stripping and terminations in indoor application due to its unique tight buffering of each fibre unit. Additional Options Steel Wire Braiding for armoring protection

Technical Data:
No. of Fibres		2,4	6	8	12
Design	Breakout
Buffer Diameter - ø	mm	0.9 ± 0.05	0.9 ± 0.05	0.9 ± 0.05	0.9 ± 0.05
CSM/sheath nom. diameter	mm	1.0	1.0/2.2	2.0/3.5	2.0/6.2
Sub-unit nom. sheath thickness	mm	0.35	0.35	0.35	0.35
Sub-units nom. diameter	mm	2.0	2.0	2.0	2.0
Outer Sheath Nom. Thickness	mm	1.0	1.0	1.0	1.0
Cable Nom. Diameter	mm	7.0	8.2	9.5	12.3
Cable Weight	kg / km	48	64	89	149
Min. bending radius		Without Tension 10 x Cable Dia.		Under Maximum Tension 20 x Cable Dia.
Temperature range	Installation		-10°C -> +60 °C
	Transport. & Storage		-40°C -> +70 °C
	Operation		-20 °C-> +70 °C
Flame Retardant	IEC 60332-1, IEC60332-3-24

*Please refer to our General Installation, Safety & Handling recommendations before handling.

Ordering Information
UCFIBRE™® MB SERIES FO Cable part numbers are made up using the table below.The part number always starts with the letters MB to denote that it is a UCFIBRE™® MB SERIES FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type. Example of UCFIBRE™® MB SERIES FO Cable part number: MB008M3The above example describes an OM3(50UM, Aqua Sheath) UCFIBRE™® MB SERIES FO Cable, with 8 cores.

Ordering Information

UCFIBRE™® MB SERIES FO Cable part numbers are made up using the table below.The part number always starts with the letters MB to denote that it is a UCFIBRE™® MB SERIES FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type. Example of UCFIBRE™® MB SERIES FO Cable part number: MB008M3The above example describes an OM3(50UM, Aqua Sheath) UCFIBRE™® MB SERIES FO Cable, with 8 cores.

MB	XXX	XX
MB SERIES	Core quantity	FIBRE TYPE
	002 - 2 CORES 004 - 4 CORES 006 - 6 CORES 008 - 8 CORES 012 - 12 CORES	SM - SINGLEMODE, G652D, 9um (yellow sheath) M1 - OM1, 62.5um (orange sheath) M2 - OM2, 50um (orange sheath) M3 - OM3, 50um (aqua sheath) M4 - OM4, 50um (aqua sheath)
