UCCONNECT® Ultra High Density MTP®/MPO Module
Ultra High Density MTP®/MPO Module
Features
- Available in Duplex LC and Quad LC
- Available in G657A, OM3 and OM4
- Utilizes bend-insensitive fibre
- Quick release mechanism
- Type "P" is Draka UC defacto, Type A and B are available
- Utilized with UC9600 1U/2U/4U Patch Panel
Application
UC9600 are used to house and organize the trunk fiber optic cable, compatible with MPO-LC cassettes. Easy access from front and rear, panels has 6 slots, which can install 6 module cassettes. It is ideal for fast and reliable patch solutions within main, horizontal and equipment distribution areas.

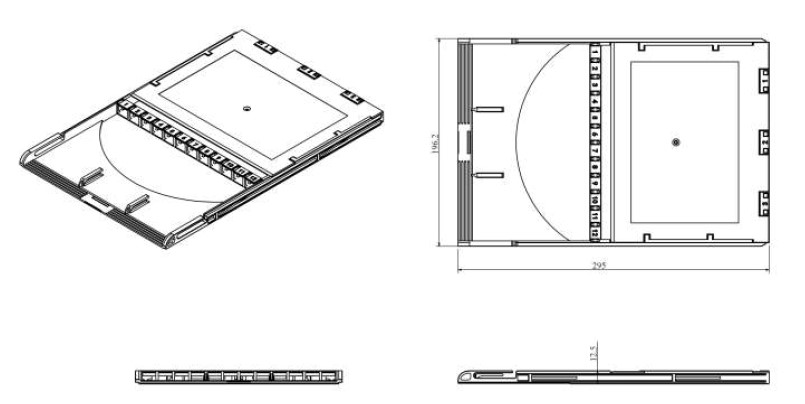

| Construction | |||
|---|---|---|---|
| Standard | ANSI/TIA-568-C.3,ISO/IEC 11801, RoHS | ||
| Material Housing | ABS | ||
| Module Housing Colour | Black | ||
| Front Adaptor | Duplex or Quad LC with dust cap | ||
| Rear Adaptor | MTP®/MPO with dust cap | ||
| Assemblies | Pre_installed male MTP®/MPO to fanout LC assemblies inside module | ||
| Performance | |||
| Insertion Loss | Return Loss (per fiber) | ||
| (MTP®/MPO+LC) 1x8F/1x12F/1x24F |
|||
| Single Mode | 0.75dB (Standard) 0.50dB (Low Loss) |
55dB | |
| Multi Mode | 0.50dB (Standard) 0.35dB (Low Loss) |
26dB | |
 |
|||

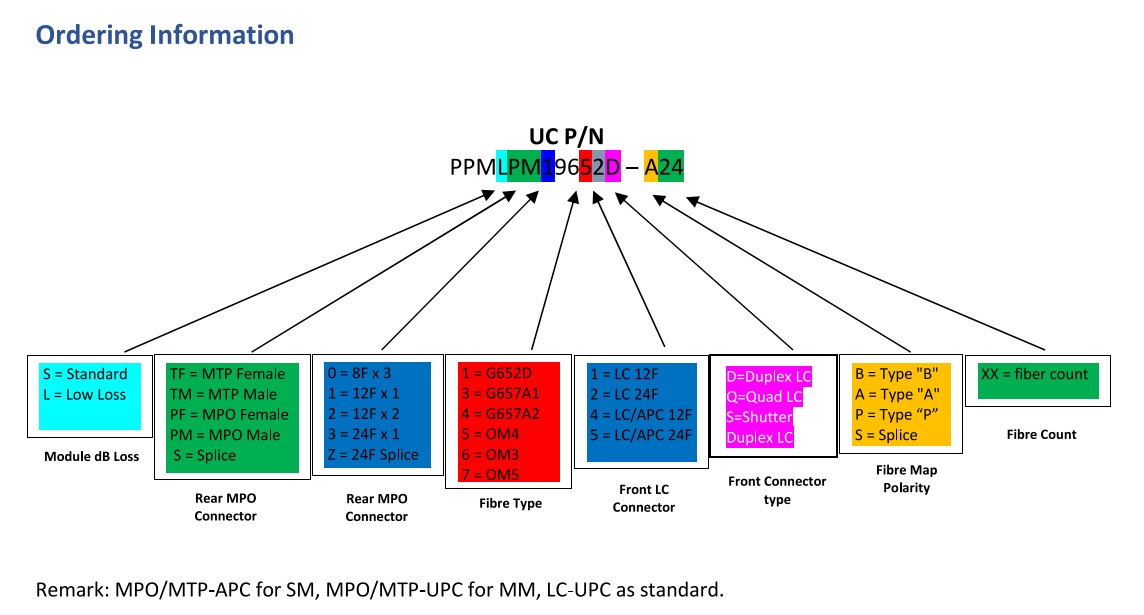

| Ordering Information | |||
| UC P/N | Product Description | P.U | Weight (g) |
| Type "P" | |||
| PPMLPM39652D-P24 | Draka UCCONNECT® UC9600 Series UHD Low Loss 1x MPO/UPC-24(M) to LC/UPC(D) Module MM OM4 Type P Violet | 1 set/box | 150 |
| PPMLPM29662D-P24 | Draka UCCONNECT® UC9600 Series UHD Low Loss 2x MPO/UPC-12(M) to LC/UPC(D) Module MM OM3 Type P Aqua | 1 set/box | 150 |
