UCCONNECT® UC9500 High Density Fibre Suite

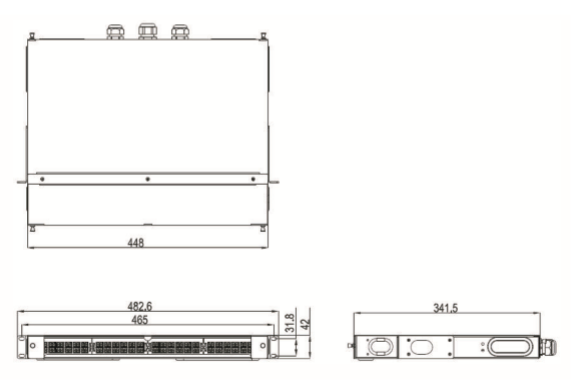

UC9500 Distribution Panel, Empty

Features

  • Supported adaptor includes LC. SC , FC, ST, MPO , MTP®
  • Mount to standard EIA 19" rack rails
  • Removable top cover provides access to connections, fibres, and slack storage in rear of tray
  • Multiple trunk cable entry locations provided on rear and sides of enclosure
  • Include fiber optic cable routing kit for cable management


Application

UC9500  Distribution Panel is engineered to support both UC9500 simplex/duplex LC/SC/ST/FC front panels and MPO/MTP® modules. This unique design allows one footprint to accept 1, 2, 12 and 24 fibre applications
Construction
Material Details
Matrix Steel 1.0mm thickness
Lock Push-Pull Rivet Black
Cable routing kit ABS Black
Dimension 1U x 482 mm x 300 mm; 2U x 482 mm x 300 mm, 4U x 482 mm x 452 mm
Weight 3.26kg (1U), 6.52kg (2U), 6kg (4U).
Surface Finish Stain Resistant Coating
+ Standard Panel comes without fibre adaptor, front-panel and splice tray. + Fits up to 2x UC9500 Splice Tray 24F (PPST9521-24) and 1x UC9500 Splice Tray Cover (PPST9521-C) per each rack unit.

Standars

  • IEC60297-3-2010 Dimension of mechanical structure of 19 inches series
  • IEC24764-2010 Generic Cabling Systems for Data Centres
Ordering Information
UC P/N Product Description P.U
PP9510 UC 1U Patch Panel 9515, Fixed type, Empty 1pc
PP9515 UC 1U Patch Panel 9515, Drawer type, Empty 1pc
PP9520 UC 2U Patch Panel 9520, Fixed type, Empty 1pc
PP9540 UC 4U Patch Panel 9540, Drawer type, Empty 1pc
