Draka UC500 Cat.6a S/FTP SWB LSZH AR_AT_UV
Category cable for demanding environments

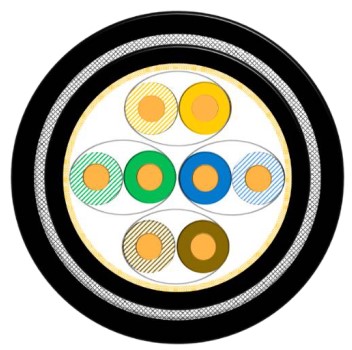

| Construction | |
|---|---|
| Conductor | Solid copper wire (AWG23) |
| Insulation | Foam PE |
| Twisting | 2 cores to the pair |
| Pair Screen | High Performance Individual Pair Screen |
| Overall screen | Tinned Copper Braid |
| Inner Sheath | LSZH |
| Armouring | Galvanized Steel Wire Braid |
| Outer sheath | LSZH (AR-AT-UV) |
| Sheath colour | Black |
| Mechanical properties | ||
|---|---|---|
| Bending radius | Installation (No Load) | 8 x D |
| Temperature range | During operation | -20°C to + 70°C |
| During installation | 0°C to + 50°C | |
| Electrical properties at 20°C | ||
|---|---|---|
| DC Loop resistance | - | ≤ 187.6Ω/km |
| DC Resistance Unbalance | - | ≤ 4% |
| Characteristic impedance | 1-100Mhz | 100 ± 15 Ω |
| Mutual capacitance | at 1kHz | ≤ 5.6nF/100m |
| Capacitance unbalance | (pair to ground) | ≤ 300 pF/100m |
| Nom. Velocity of Propagation | - | 76% |
Application
- Generic Data transmission. This cable is a Cat6a S/FTP cable is meant for use as installation/horizontal cable in demanding electrical and mechanical environment.
- Suitable for installation in Anti-Termite, Anti-Rodent & UV Resistance area.
Standards
- ANSI/TIA 568.2-D;
- ISO/IEC 11801-1/2 ; IEC 61156 - 5
- EN 50173; EN 50288- 5 -1
Flame Rating
- IEC 60332 - 1
| Electrical Data Nominal at 20°C | ||||
|---|---|---|---|---|
| Freq. | Max. Attenuation | Min. Return loss | Min. NEXT | |
| (MHZ) | (dB) | (dB) | (dB) | |
| 1 | 2.1 | 20 | 74.3 | |
| 4 | 3.8 | 23 | 65.3 | |
| 16 | 7.5 | 25 | 56.2 | |
| 100 | 19.1 | 20.1 | 44.3 | |
| 250 | 31.1 | 17.3 | 38.3 | |
| 500 | 45.3 | 15.2 | 33.8 | |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 85075BRTVBK-5H | Draka UCDATA CATEGORY CABLE UC500 CAT.6A SFTP 4 PAIR 23AWG GSWB Armoring LSZH ATARUV Black IEC60332-1, IEC 60754-1&2, IEC 61034 | 500m/drum | |
