UC CONNECT® HD 1RU 24 PORT UTP/STP UNLOADED PATCH PANEL

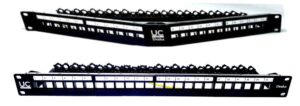

HD 1U 48p flatHD 1U 48p Angle
GENERAL SPECIFICATIONS
Item Description
Rack Type EIA 310D, 19 Inch Rack Mount
Rack Unit 1RU
Interface, Front RJ45
Total Ports 24 Port
Compatibility HD family Keystone Modular jack UTP/STP
Panel Style Flat, and Foldable Angle
Cable Type Unshielded and Shielded
Rear Cable Manager Integrated Individual Smart Clip Lock Rear Cable Management
Color Black
MECHANICAL AND THERMAL PROPERTIES
Item Description
Dimension (WXDXH) Flat Panel, 482.60X93.10X44.00 mm Foldable Angle Panel, 482.60X180X44.00 mm
Flammability Rating UL 94 V-0
Operating Temperature -20 °C to +60 °C
Storage Temperature -40 °C to +75 °C
Relative Humidity Up to 95%, non-condensing
Ordering Information
Part Number Description Weight Packaging Unit
YPPBP02775 Draka UCCONNECT HD 1RU 24 Port Flat STP/UTP Unloaded Patch Panel, Black 481g 1 per box
YPPBP02778 Draka UCCONNECT HD 1RU 24 Port Foldable Angled STP/UTP Unloaded Patch Panel, Black 455g 1 per box
