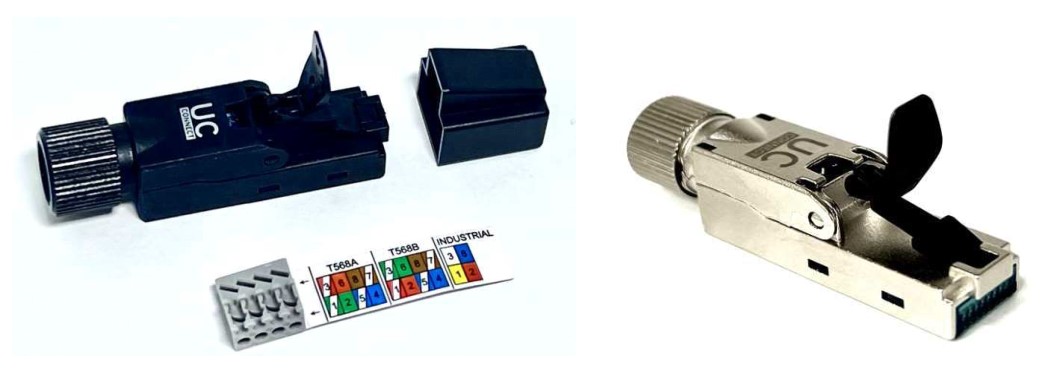

UC CONNECT® CATEGORY 6A Field Termination Plug, Straight
Overview
- Field Termination Plug compatible with UCCONNECT® system
- Category 6A/EA hardware compliant performance.
- RoHS & MPTL Compliant
| GENERAL SPECIFICATIONS | |
|---|---|
| Item | Description |
| Termination Capability | 22-26AWG solid wire , 23-27AWG stranded wire |
| Supporting Ins. Dia. | 1.0 ~ 1.65 mm |
| Supporting Cable Type | Shielded/Unshielded Cable |
| Supporting Cable Diameter | STP : 6~9.0mm ; UTP : 5.5~8.5mm |
| PoE | PoE+ and 4PPoE |
| Current Rating | 1.5A |
| MECHANICAL PROPERTIES | |
|---|---|
| Item | Description |
| Plug Housing | Zinc Alloy (STP)/PC FR (UTP) |
| Plug Pins | Phosphor bronze with 50µ" gold plating |
| IDC Durability | 750 mechanical Cycles |
| Protection Category | IP20 |
| Ordering Information | |||
|---|---|---|---|
| Part Number | Description | Weight | Packaging Unit |
| FTPSA00 | Draka UCCONNECT CAT6A STP Field Termination Plug, Straight | 16.1g | 1 pc per bag |
| FTPUA00 | Draka UCCONNECT CAT6A UTP Field Termination Plug, Straight | 13.1g | 1 pc per bag |
