UC CONNECT® HD CATEGORY 6A KEYSTONE JACK 180 TOOL-LESS
Standards
- ANSI TIA/EIA 568-C.2 | TIA 942B
- ISO/IEC 11801 :2017 CLASS E
- IEC 60603-7
- EN 50173-1
- FCC Part 68 SUBPART F
Overview
- Category 6A hardware compliant performance.
- Toolless termination.
- High Density Design provides optimize usage of rack space.
- Component level tested.
- RoHS Compliant
| GENERAL SPECIFICATIONS | |
|---|---|
| Item | Description |
| Interface, Front | RJ45 |
| Interface, Rear | IDC Insulation Displacement Contact |
| Cable Type | Shielded/Unshielded Cable |
| Termination Tool | Toolless, Not required Termination tools |
| Dimension (WxDxH) | 14.38x29.91x19.31 mm |
| Protection | with Dust Cap |
| MECHANICAL PROPERTIES | |
|---|---|
| Item | Description |
| Conductor Gauge | Solid 22–24 AWG; Stranded 22-26 AWG |
| IDC Termination | 110 Insulation Displacement Contact (IDC), KRONE |
| IDC Durability | 250 times re-termination |
| Plug Insertion Life | 750 Mating Cycle |
| Plug Retention Force | 79N |
| Wiring | T568A | T568B |
| Smart Clip Lock | Integrated Smart Clip Lock, Re-usable, Adjustable Cable Diameter |
| Ordering Information | |||
|---|---|---|---|
| Part Number | Description | Weight | Packaging Unit |

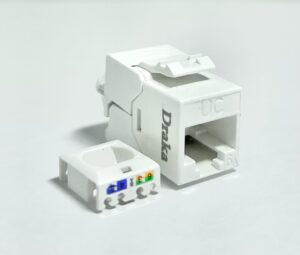

| HDMJTF1270BK | Draka UCCONNECT HD CAT6A Unshielded Keystone Jack 180° Tool-Less, Black | 6g | 50 per box |
| HDMJTF1270WH | Draka UCCONNECT HD CAT6A Unshielded Keystone Jack 180° Tool-Less, White | 6g | 50 per box |
| HDMJTF1270BL | Draka UCCONNECT HD CAT6A Unshielded Keystone Jack 180° Tool-Less, Blue | 6g | 50 per box |
| HDMJTF1270YL | Draka UCCONNECT HD CAT6A Unshielded Keystone Jack 180° Tool-Less, Yellow | 6g | 50 per box |
| HDMJTF1270RD | Draka UCCONNECT HD CAT6A Unshielded Keystone Jack 180° Tool-Less, Red | 6g | 50 per box |

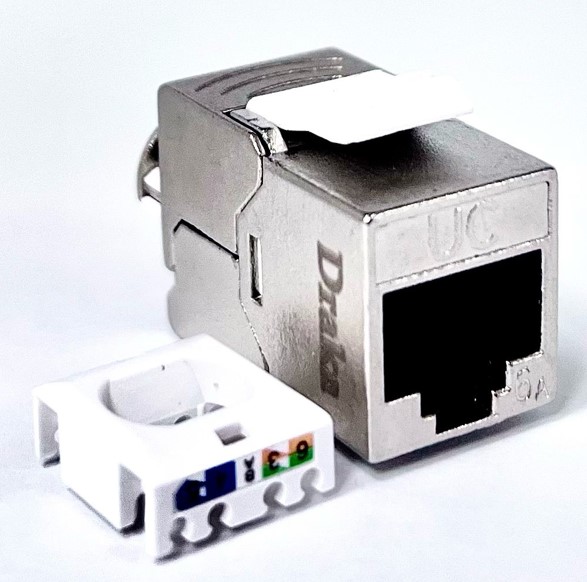

| HDMJTF1271MA | Draka UCCONNECT HD CAT6A Shielded Keystone Jack 180° Tool-Less, Metallic | 14g | 50 per box |
