UC C500 KJ TF S V3 / V4
Keystone Jack,Cat.6A,RJ45,FTP, 90° Tool Free, Shielded, Ease Connect / Keystone Jack,Cat.6A,Stranded,RJ45,FTP, 90° Tool Free, Shielded, Ease Connect
| Specification | |
|---|---|
| Item | Description |
| Material Housing | Zinc Die Casting PA |
| Insulation Material | PC White |
| Contact Area | 30 μ Gold Plated |
| Wire size compatibility | 5-10 mm |
| Connection class | IP20 |

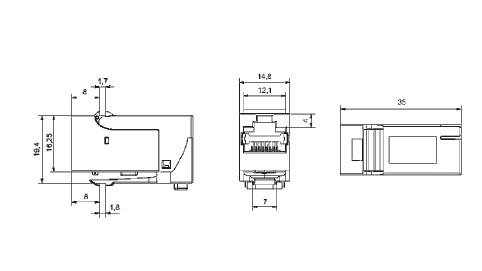

| Dimensions | 19.3 x 14.7 mm |
| Housing | Zinc die cast Nickel plating |
| Dimensions | 41 x 24 x 18 mm |
Contact resistance≤20m
| Performance | |
|---|---|
| Item | Description |
| Insulation resistance | ≥500m |
| Operating temperature | -40 ° C - + 70 ° C |
| Durability | Jack 800 cycles |
- 10Gigabit Component level compliance to ISO/IEC 11801:2002 (including Amendment 2 – 2nd Edition), Amendment 2 to CENELEC EN 50173-1 (2010) and IEC 60603-7-51, ANSI TIA 568-C.2
- Easy install facilitated by tool free wire termination
- Fully compatible with our full range of faceplates, adapters and boxes
- PoE+ IEEE 802 3at suitable for Power over Ethernet plus
- Fits into 32 mm back-box/floorbox/ grid box with angled adapter
| Ordering Information | ||||
|---|---|---|---|---|
| SAP IC | UC P/N | UC Material Code | Product Description | P.U |
| YMJBP00296 | KJTF1272 | UC C500 KJ TF S V3 | Keystone Jack,Cat.6a,RJ45,FTP, 90° Tool Free, Shielded, Ease Connect | 1pc/bag |
| YMJBP00297 | KJTF1273 | UC C500 KJ TF S V4 | Keystone Jack,Cat.6a,Stranded,RJ45,FTP, 90° Tool Free, Shielded, Ease Connect | 1pc/bag |
