PB DP FC 1x2xAWG24/19 TRAILING PUR
PROFIBUS DP FC Trailing-Cable, 150 Ohm

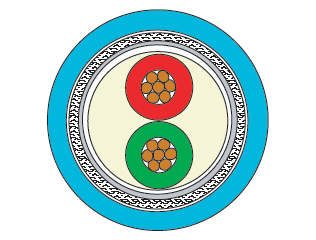

| Construction | |
|---|---|
| Conductor | stranded bare copper wires, 19x0.13, Φ 0.65 mm, (cross-section 0.25 mm²) |
| Insulation | foam-skin-PE, Φ 2.5 mm |
| Stranding | two cores gn / rd to the Pair |
| Wrapping | PET-Foil |
| Bedding | PVC, filling the interstices 0 5,4 mm |
| Static screen | PET-Al-Foil spirally applied |
| Braid | tinned copper braid, coverage approx. 70% |
| Sheath | PUR, Φ 8.0 mm |
| Colour | petrol |
| Outer Diameter | Nom. 8.0 mm |
| Weight | Nom. 70 kg/km |
| Tensile force N | 100 |
| Mechanical properties | |
|---|---|
| Bending radius | |
| Single bending | ≥ 40 mm |
| Repeated bending | ≥ 120 mm |
| Bending cycles (at 20°C) | 3.000.000 |
| Temperature range | - 40°C to + 60°C |
| Transport and storage | - 40°C to + 60°C |
| Installation | - 40°C to + 60°C |
| Electrical properties at 20°C | |
|---|---|
| Loop resistance | ≤ 133 Ω/km |
| Screen resistance nominal | ≤ 14 Ω/km |
| Characteristic impedance (Nominal) | 150 Ω |
| Mutual capacitance (at 1 kHz) | ca. 28.5 nF/km |
| Insulation resistance | ≥ 5 GΩkm |
| Test Voltage (DC, 1 min) Core/Core and Core/Screen | 1 kV |
| Operating voltage (RMS) | ≤ 100 V |
Application
Trailing cable: - Min. 3,000.000 bending cycles with min. bending radius and a maximum accelleration of 4m/s2 - Limited segment length(according to PROFIBUS-Net Manual) - FastConnect-assembly - UV-resistant - Silicon free - Limited oil and grease resistantStandards
- Customer Specification
- UL - Listing/300V Rating/CMX
Fire Rating
- IEC 60332 - 1,VDE 0482-265-2-1
- UL1581 VW -1
- IEC -61034-2, IEC 60754 - 1 /2
| Electrical Data at 20°C | |||
|---|---|---|---|
| Frequency (kHz) | Impedance (Ohm) | Attenuation (dB/100m) | |
| 9.6 kHz | 270 ± 27 | ≤ 133 Ω/km | |
| 38.4 kHz | 185 ± 18.5 | ≤ 0.4 | |
| 1 MHz | - | - | |
| 3 MHz | 150 ± 15 | - | |
| 4 MHz | 150 ± 15 | ≤ 2.5 | |
| 16 MHz | 150 ± 15 | ≤ 4.9 | |
| 20 MHz | 150 ± 15 | - | |
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1026562 | PROFIBUS DP FC Trailing-Cable, PB DP FC 1x2xAWG24/19 TRAILING PUR | 1000m/drum | |
