LONAK® 2 x 1.3 mm²
Building automation cable

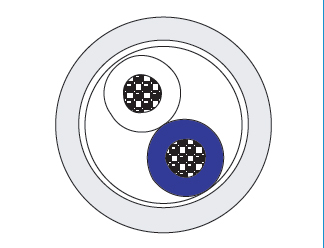

| Construction | |
|---|---|
| Conductor | Stranded copper wires, tinned 1.3 mm2 , 7x0.49 mm, Ø 1.47 mm |
| Insulation | PVC, 2.69 mm Ø |
| Conductor identification | 1 x white, 1 x blue |
| Pair Stranding | 2 conductors to the pair |
| Cable lay up | 1 pair to the core |
| Wrapping | 1 x PET foil |
| Rip cord | yes |
| Outer sheath | PVC, grey RAL 7035, Ø 7.0 mm |
| Outer Diameter | Nom. 7.0 mm |
| Weight | Nom. 70 kg/km |
| Mechanical properties | |
|---|---|
| Operating temperature | - 30°C to + 70°C |
| Min. Installation temperature | - 5°C |
| Minimum bending radius | 10 x D |
| Minimum bending radius (during pulling) | 15 x D |
| Maximum pulling force | 130 N |
| Electrical properties at 20°C | |
|---|---|
| Loop DC resistance (max.) | 28 Ω/km |
| Insulation resistance (at 500 V, 1 min.) | 100 MΩ*km |
| Mutual capacitance at 800 Hz (max.) | 72 nF/km |
| Velocity factor | 0.55 |
| Max. operating voltage DC | 75 V |
| Test voltage conductor/conductor | 3.5 kV |
Application
- Fixed indoor installations
- LON cabling
- Building automation
Fire Rating
- IEC 60332-1
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 60013675 (1003578)(L432332) | 2x1.3 mm², Building automation cable, LONAK® 2 x 1.3 mm² | 1000m/drum | |
