1.0/4.8 AF
Video Cable 75 Ω

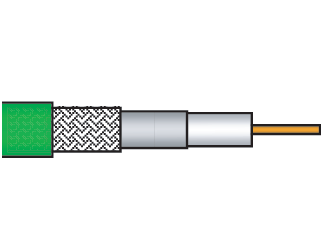

| Construction | |
|---|---|
| Inner conductor | solid copper wire, bare, diameter 1.0 mm |
| Insulation | Foam-PE, diameter 4.8 mm |
| Outer conductor | Al-PET-Al-foil under tinned copper braid, diameter 5.6 mm |
| Sheath | LSZH, PVC, PUR diameter 7.0 mm green, RAL 6018, blue, RAL 5015 |
| Tensile force N | 140 |
| Electrical Properties at 20°C | ||
|---|---|---|
| DC resistance | Inner conductor | 22 Ω/km |
| Outer conductor | 7 Ω/km | |
| Mutual capacitance | - | 56 pF/m |
| Characteristic impedance | - | 75 Ω ± 0.75 Ω |
| Velocity ratio | - | 78 % |
| Screening factor | - | ≥ 100 dB |
| Electrical Data at 20°C | |||
|---|---|---|---|
| Attenuation (dB/100m) | Return loss (dB) | ||
| Frequency (MHz) | Frequency (MHz) | ||
| 1 | 0.8 | 50 - 300 | ≥26 |
| 3 | 1.3 | 300 - 3000 | ≥22 |
| 5 | 1.6 | 3000 - 3500 | ≥18 |
| 10 | 2.1 | 3500 - 5000 | ≥15 |
| 30 | 3.5 | - | - |
| 100 | 6.2 | - | - |
| 200 | 8.9 | - | - |
| 300 | 11.3 | - | - |
| 500 | 14.8 | - | - |
| 800 | 18.5 | - | - |
| 1000 | 20.7 | - | - |
| 1500 | 24.9 | - | - |
| 2250 | 31.7 | - | - |
| 3000 | 37.3 | - | - |
| 3500 | 41.5 | - | - |
| 4000 | 47.2 | - | - |
| 4500 | 51.2 | - | - |
| 5000 | 55.1 | - | - |
Application
- Video cables are primary used in closed circuit TV systems and in several studio applications for transmission of image signals.
Standards
- For analogue and digital video signals (Composite, Component, SDI, SDV, SDTI, HDTV)
Fire Rating
- PVC: IEC 60332-1
- LSZH: IEC 60332-1, IEC 61034-2, IEC 60754-1/2
- LSZH-C: IEC 60332-3 C
| Ordering Information | |||
|---|---|---|---|
| P/N | Product Description | P.U | |
| 1002208 CT2850401 | 1.0/4.8 AF LSZH-C green, Video Cable 75 Ω, 1.0/4.8 AF | 1000m/drum | |
| 1002209 CT2850402 | 1.0/4.8 AF LSZH-C green, Video Cable 75 Ω, 1.0/4.8 AF | 1000m/drum | |
| 1002210 CT2850405 | 1.0/4.8 AF LSZH-C green, Video Cable 75 Ω, 1.0/4.8 AF | 1000m/drum | |
| 1002198 CT2758300 | 1.0/4.8 AF PVC green, Video Cable 75 Ω, 1.0/4.8 AF | 1000m/drum | |
| 1002199 CT2758301 | 1.0/4.8 AF PVC blue, Video Cable 75 Ω, 1.0/4.8 AF | 1000m/drum | |
