UC FIBER CONNECT – FIBER CONTAINMENT SYSTEM

Overview

UC FIBER CONNECT is a system designed to protect and route fiber optic patch cords, cable assemblies, MPO trunk cable and MPO patch cords to and from network cabinet, ODF and other area. UC FIBER CONNECT offer ideal solutions for optical raceway requirements and applications with elegant appearance, ease move-change-maintenance. UC FIBER CONNECT ensures a two-inch minimum bend radius is maintained throughout the system. Tool-less reduce time for installation.

UC Fiber Connect

Recommended Patch Cord Densities

Dimension Loading Capacity 2mm patch cord 3mm patch cord
UC Fiber Connect 120 50 % 955 424
75 % 1433 636
100 % 1910 848
UC Fiber Connect 240 50 % 1910 849
75 % 2866 1273
100 % 3821 1698
UC Fiber Connect 360 50 % 2370 1055
75 % 3556 1578
100 % 5136 2106

Materials

  1. Straight Sections: PVC
  2. Other Plastic Parts: ABS

Safety & Standards

  1. UL 2024, Cable Routing Assemblies and Communications Raceways.
  2. RoHS Directive (EU) 2015
  3. Flame retardant materials rated GB/T2048-2008 FV-0 equivalent to UL94-0







UCCONNECT® UC9500 High Density Fibre Suite

UC9500 Module MTP®/MPO

Features

  • Installed with Draka BendBright®-XS bend-insensitive fibre
  • Installation is simple, with the module being easily installed, or removed, using push-pull mechanism; no tools required.
  • Available in 6 Duplex LC (front) to 1 Male/Female MPO (rear), 12 Duplex LC (front) to 2 Male/Female MPO (rear). USCONEC MTP® available upon request.
  • Factory terminated and tested fibre connectors allows highly consistent quality and guaranteed standard compliance.
  • Tested per IEEE 802.3ae to support 10Gb/s network data rates and ANSI T11.2 Fibre Channel for up to 16 Gb/s data rates
  • Adaptor colour as specified by TIA/EIA-568-C.3



Application

UC9500 Module MPO/MTP® LC-Duplex is designed specifically to fit UC9500 Distribution Panel. Design and engineered to reduce total cost of ownership when deployed with 12-Fibre MPO-MPO , or 12-Fibre MTP-MTP, fibre trunks. This module supports the popular 2-fibre 10Gb up to the next generation 25Gb/40Gb/100Gb/400Gb applications. MTP® is a registered 12-fibre MPO connector, trademark of USCONEC.

Contruction
Module Housing Material Steel, Thickness 1.0mm
Module Housing Surface Finish Fingerprint and dust resistant
Module Housing Colour Black
LC-Duplex Adaptor Colour OM3 : AQUA ; OM4 : VIOLET ; Singlemode : BLUE
LC Adaptor Split Sleeve Material Ceramic

+ Standard Panel comes in empty, unloaded.

Environmental
Operating Temperature -20°C to + 70°C
Storage and shipping temperature -40°C to + 75°C


Ordering Information
UC P/N Product Description P.U
PPMT9541-12 UC9500 Module MTP®-LC 12F 9/125um 1pc
PPMP9541-12 UC9500 Module MPO-LC 12F 9/125um 1pc
PPMP9542-24 UC9500 Module MTP®-LC 24F 9/125um 1pc
PPMP9542-24 UC9500 Module MPO-LC 24F 9/125um 1pc
PPMT9543-12 UC9500 Module MTP®-SC 12F 9/125um 1pc
PPMP9543-12 UC9500 Module MPO-SC 12F 9/125um 1pc
PPMT9551-12 UC9500 Module MTP®-LC 12F 50/125um 1pc
PPMP9551-12 UC9500 Module MPO-LC 12F 50/125um 1pc
PPMT9552-24 UC9500 Module MTP®-LC 24F 50/125um 1pc
PPMP9552-24 UC9500 Module MPO-LC 24F 50/125um 1pc
PPMT9553-12 UC9500 Module MTP®-SC 12F 50/125um 1pc
PPMP9553-12 UC9500 Module MPO-SC 12F 50/125um 1pc
PPMT9561-12 UC9500 Module MTP®-LC 12F 50/125um 1pc
PPMP9561-12 UC9500 Module MPO-LC 12F 50/125um 1pc
PPMT9562-24 UC9500 Module MTP®-LC 24F 50/125um 1pc
PPMP9562-24 UC9500 Module MPO-LC 24F 50/125um 1pc
PPMT9563-12 UC9500 Module MTP®-SC 12F 50/125um 1pc
PPMP9563-12 UC9500 Module MPO-SC 12F 50/125um 1pc

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 Splice Tray Cover

Features

  • Light weight for easy handling
  • High quality fingerprint and dust resistant surfaces
  • It is compatible with stackable UC9500 Splice Tray; its detachable to fit onto top of a splice tray stack.



Application

UC9500 Splice Tray Cover keeps the fusion splices away from accidental stress-strain, water droplets and dust particles.

ColourBlack

Technical Information
Material Details
Cover material ABS

UC9500 Splice Tray Cover

UC9500 24-Fibre Splice Tray (Cover-less)

Features

  • Stackable with detachable cover
  • Light weight
  • Highly durable
  • Support up to 24multimode and singlemode fusion splices



Application

UC9500 24-Fibre Splice Tray is a fusion splice enclosure, providing critical protection for fusion splices and is compatible with UC9500 1U Distribution Panel-Slot Empty Fixed.

Technical Information
Material Details
Cover material ABS
Colour Black
Weight
Surface finish Resistant to fingerprint and dust

UC9500 24-Fibre Splice Tray (Cover-less)

Ordering Information
UC P/N Product Description P.U
PPST9521-C UC9500 Splice Tray Cover 1pc
PPST9521-24 UC9500 Splice Tray 24F 2pc/box

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 1-Slot 6-Port ST Simplex Front-Panel

Features

  • Left and right push-pull rivet
  • Supported adaptor
  • Up to 6 Simplex ST multimode or singlemode adaptors
  • Light Weight
  • Easy and fast adds, moves and changes
  • Easy Handling



Application

UC9500 1-Slot 6-Port ST Simplex Front-Panel fits into 1 slot of UC9500 Distribution Panel 4-Slot Empty Fixed and accepts simplex ST adaptors

Overall Weight12 gram

Construction
Material Details
Plate material Steel

UC9500 1-Slot 6-Port ST Simplex Front-Panel

UC9500 1-Slot 6-Port LC-Duplex/SC-Simplex Front-Panel

Features

  • Left and right push-pull rivet
  • Supported adaptor
  • Up to 6 LC-Duplex or 6 SC-Simplex ; multimode or singlemode adaptors
  • Light Weight
  • Easy and fast adds, moves and changes
  • Easy Handling



Application

UC9500 1-Slot 6-Port LC-Duplex/SC-Simplex Front-Panel fits into 1 slot of UC9500 Distribution Panel 4-Slot Empty Fixed and accepts both LC-Duplex and SC-Simplex adaptors

Construction
Material Details
Plate material Steel
Overall Weight 12 gram

UC9500 1-Slot 6-Port LC-Duplex/SC-Simplex Front-Panel

Ordering Information
UC P/N Product Description P.U
PPA9513-6 UC9500 1 Slot 6Port FC Simplex Front Panel 8pc/pack
PPA9514-6 UC9500 1 Slot 6Port LC Duplex / SC Simplex Front Panel 8pc/pack

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 1-Slot Blank Front-Panel

Features

  • Left and right push-pull rivet
  • Light Weight
  • Easy and fast adds, moves and changes
  • Easy Handling



Application

UC9500 1-Slot Blank Front-Panel covers unused slots of UC9500 Distribution Panel 4-Slot Empty Fixed to block out harmful elements such as watter droptlets and dust particles

Overall WeightNom 15 gram

Construction
Material Details
Plate material Steel

UC9500 1-Slot Blank Front-Panel

UC9500 1-Slot 6-Port SC-Duplex Front-Panel

Features

  • Left and right push-pull rivet
  • Supported adaptor
  • Up to 6 SC-Duplex multimode or singlemode adaptors
  • Light Weight
  • Easy and fast adds, moves and changes
  • Easy Handling



Application

UC9500 1-Slot 6-Port SC-Duplex Front-Panel fits into 1 slot of UC9500 Distribution panel 4-Slot Empty Fixed and accepts SC-Duplex adaptors

Construction
Material Details
Plate material Steel
Overall Weight 12 gram

UC9500 1-Slot 6-Port SC-Duplex Front-Panel

UC9500 1-Slot 6-Port FC-Simplex Front Panel

Features

  • Left and right push-pull rivet
  • Supported adaptor
  • Up to 6 SC-Duplex multimode or singlemode adaptors
  • Light Weight
  • Easy and fast adds, moves and changes
  • Easy Handling



Application

UC9500 1-Slot 6-Port FC-Simplex Front Panel fits into1 slot of UC9500 Distribution Panel 4-Slot Empty Fixed and accepts FC-Smplex adaptors

Construction
Material Details
Plate material Steel
Overall Weight 12 gram

UC9500 1-Slot 6-Port FC-Simplex Front Panel

Ordering Information
UC P/N Product Description P.U
PPA9515-0 UC9500 1 Slot Blank Front Panel 8pc/pack
PPA9511-6 UC9500 1 Slot 6Port SC Duplex Front 8pc/pack
PPA9512-6 UC9500 1 Slot 6Port ST Simplex Front 8pc/pack

UCCONNECT® UC9500 High Density Fibre Suite

UC9500 Distribution Panel, Empty

Features

  • Supported adaptor includes LC. SC , FC, ST, MPO , MTP®
  • Mount to standard EIA 19″ rack rails
  • Removable top cover provides access to connections, fibres, and slack storage in rear of tray
  • Multiple trunk cable entry locations provided on rear and sides of enclosure
  • Include fiber optic cable routing kit for cable management



Application

UC9500  Distribution Panel is engineered to support both UC9500 simplex/duplex LC/SC/ST/FC front panels and MPO/MTP® modules. This unique design allows one footprint to accept 1, 2, 12 and 24 fibre applications

Construction
Material Details
Matrix Steel 1.0mm thickness
Lock Push-Pull Rivet Black
Cable routing kit ABS Black
Dimension 1U x 482 mm x 300 mm; 2U x 482 mm x 300 mm, 4U x 482 mm x 452 mm
Weight 3.26kg (1U), 6.52kg (2U), 6kg (4U).
Surface Finish Stain Resistant Coating

+ Standard Panel comes without fibre adaptor, front-panel and splice tray.

+ Fits up to 2x UC9500 Splice Tray 24F (PPST9521-24) and 1x UC9500 Splice Tray Cover (PPST9521-C) per each rack unit.


Standars

  • IEC60297-3-2010 Dimension of mechanical structure of 19 inches series
  • IEC24764-2010 Generic Cabling Systems for Data Centres
Ordering Information
UC P/N Product Description P.U
PP9510 UC 1U Patch Panel 9515, Fixed type, Empty 1pc
PP9515 UC 1U Patch Panel 9515, Drawer type, Empty 1pc
PP9520 UC 2U Patch Panel 9520, Fixed type, Empty 1pc
PP9540 UC 4U Patch Panel 9540, Drawer type, Empty 1pc

UCCONNECT® PATCH PANEL LIGHT WEIGHT BK

1U 72 Port, 3 Modules, Compact Duplex LC, Insertion

Features

  • Light weight
  • Sleek design & feel
  • Easy fix up to 3 modules
  • Highly durable
  • Abrasion resistance
Construction
Dust Cover PVC
Matrix Aluminum Thickness 1.5mm
Adapter Plate & Panel Aluminum Thickness 1.5mm
Lock Stainless panel screw
Adaptor MTP® (rear), Duplex LC (Front)
Dimension 43.6mm x 482mm x 410mm
Weight ≤3.5 kg – Empty
Surface Finish Special Powder Coating

+ Standard Panel comes in empty, unloaded


Overview

  • MTP® is a registered MPO connector, Trademark of USCONEC
  • Fibre Integrated technology for compact storage. Extremely convinient installations using unique modular design.
Ordering Information
UC P/N Product Description P.U
PP9401 UC 1U Distribution Modular Panel,3 Slot,Empty 1pc
20K9501 Fixed-Module,MTP®/LC,12F,9/125um 2 pc/box
20K9502 Fixed-Module,MTP®/LC,24F,9/125um 2 pc/box
20K9503 Fixed-Module,MTP®/LC,12F,62.5/125um 2 pc/box
20K9504 Fixed-Module,MTP®/LC,24F,62.5/125um 2 pc/box
20K9505 Fixed-Module,MTP®/LC,12F,50/125um 2 pc/box
20K9506 Fixed-Module,MTP®/LC,24F,50/125um 2 pc/box
20K9509 Fixed-Module,MTP®/LC,12F,50/125um,OM3,LZ300 2 pc/box
20K9510 Fixed-Module,MTP®/LC,24F,50/125um,OM3,LZ300 2 pc/box

UCCONNECT® PATCH PANEL LIGHT WEIGHT BK

2U, 48 Port Patch Panel, Fixed


Overview

The light weight and easier fixtures enable installation ease and smooth termination.

Able to accomodate up to 48 ports LC & SC

Features

  • Light weight
  • Sleek design & feel
  • Easy fixtures
  • Abrasion resistance
Construction
Dust Cover PVC
Matrix Aluminum Thickness 1.5mm
Adapter Plate & Panel Aluminum Thickness 1.5mm
Lock Latch Lock
Adaptor Duplex LC, SC,ST,FC
Dimension 2U x 482mm x 405mm
Weight ≤ 4.8 kg – Empty
Surface Finish Special Powder Coating

+ Standard Panel comes in empty, unloaded

Ordering Information
UC P/N Product Description P.U
PP9441 UC 2U Patch Panel 9441, Fixed type 1 pc

UCCONNECT® PATCH PANEL LIGHT WEIGHT BK

1U 24 Port Patch Panel, Fixed


Overview

Most widely used premium panels for
datacentre applications. The light
weight and easier fixtures enable
installation ease and smooth termination.



Features

  • Light weight
  • Sleek design & feel
  • Easy fixtures
  • Abrasion resistance
Construction
Dust Cover PVC
Matrix Aluminum Thickness 1.5mm
Adapter Plate & Panel Aluminum Thickness 1.5mm
Lock Screws
Adaptor Duplex LC, SC,ST,FC
Dimension 1U x 482mm x 310mm
Weight ≤ 2.1 kg – Empty
Surface Finish Special Powder Coating

+ Standard Panel comes in empty, unloaded

Ordering Information
UC P/N Product Description P.U
PP9440 UC 1U Patch Panel 9440, Fixed type 1 pc

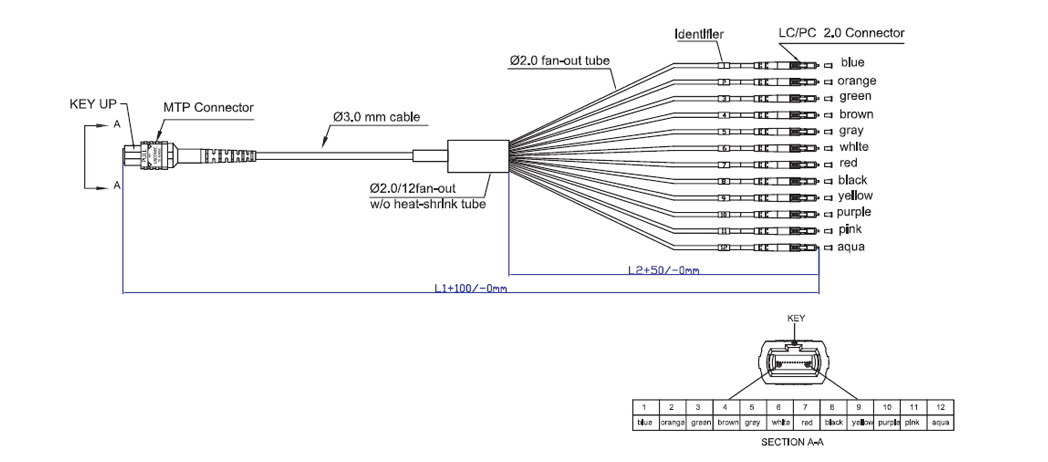

MPO-LC Pre-Terminated Trunk Cable

Indoor, LSZH, Low Loss, MTP® or MPO

Overview

  • 1. TOLERANCES OF LENGTH (mm)
    • L ≤50000 ±50
    • L > 50000 ±0.01L
  • 2. Standard lengths for patch cords are 1, 2, 3, 5 ,10 meters and customized.
  • 3. The diameters(ΦD) of the cable are 8.5mm.
  • 4. Material of cable sheath as normal is PVC,can be as required change to LSZH or other types material.
  • 5. Fibre Type : as per required.
Technical Specification
Item Technical Parameters
Connector Type UPC APC
Operation Temperature -40°C ~ +80°C
Insertion Loss(MM) ≤0.35dB+loss of cable length
Return Loss(MM) ≥20dB ≥50 dB (SM)

Note: The insertion loose based on above value need to plus fiber attenuation.

Fiber type Fiber Attenuation(dB/km)
1310nm 1383nm 1550nm 1625nm
G652D 0.6 0.6 0.5 0.6
G655 0.5 0.6
G657A 0.5 0.4 0.5
G657B 0.6 0.6 0.6 0.6
850nm 1300nm
62.5/50 3.5 1.5
OM3/OM4 2.5 0.8

  • MTP® is a registered MPO connector, Trademark of USCONEC
  • Low loss fibres or Draka BendBrightTMfibres are used for better insertion
    loss requirements when needed.
  • Factory Terminated and Component Tested
Ordering Information
Please contact our local offices for more details.
