UC CONNECT® HD 1RU 48 PORT UTP/STP UNLOADED PATCH PANEL

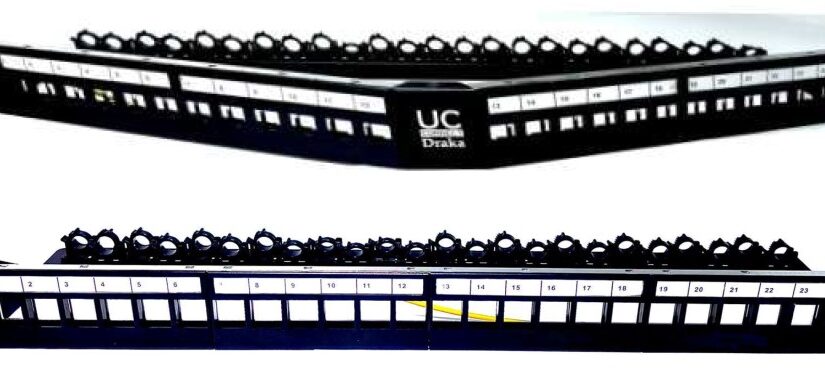

HD 1U 24p flatHD 1U 24p Angle

GENERAL SPECIFICATIONS
Item Description
Rack Type EIA 310D, 19 Inch Rack Mount
Rack Unit 1RU
Interface, Front RJ45
Total Ports 48 Port
Compatibility HD family Keystone Modular jack UTP/STP
Panel Style Flat, and Foldable Angle
Cable Type Unshielded and Shielded
Rear Cable Manager 2 Rows, Integrated Individual Smart Clip Lock Rear Cable Management
Color Black
MECHANICAL AND THERMAL PROPERTIES
Item Description
Dimension (WXDXH) Flat Panel, 482.60X109X44 mm
Foldable Angle Panel, 482.60X194X44 mm
Flammability Rating UL 94 V-0
Operating Temperature -20 °C to +60 °C
Storage Temperature -40 °C to +75 °C
Relative Humidity Up to 95%, non-condensing
Ordering Information
Part Number Description Weight Packaging Unit
YPPBP02777 Draka UCCONNECT HD 1RU 48 Port Flat STP Unloaded Patch Panel, Black 563g 1 per box
YPPBP02779 Draka UCCONNECT HD 1RU 48 Port Foldable Angled STP Unloaded Patch Panel, Black 455g 1 per box



UC CONNECT® HD 1RU 24 PORT UTP/STP UNLOADED PATCH PANEL

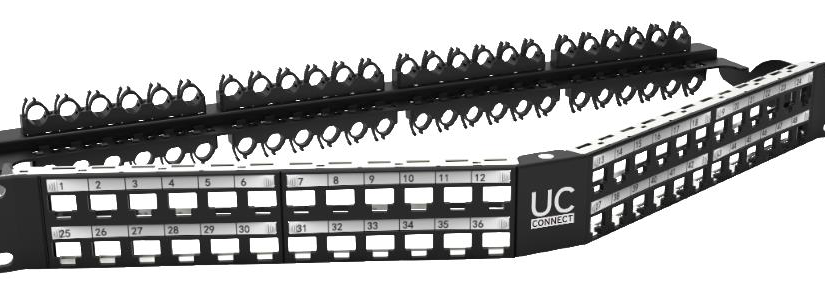

HD 1U 48p flatHD 1U 48p Angle

GENERAL SPECIFICATIONS
Item Description
Rack Type EIA 310D, 19 Inch Rack Mount
Rack Unit 1RU
Interface, Front RJ45
Total Ports 24 Port
Compatibility HD family Keystone Modular jack UTP/STP
Panel Style Flat, and Foldable Angle
Cable Type Unshielded and Shielded
Rear Cable Manager Integrated Individual Smart Clip Lock Rear Cable Management
Color Black
MECHANICAL AND THERMAL PROPERTIES
Item Description
Dimension (WXDXH) Flat Panel, 482.60X93.10X44.00 mm
Foldable Angle Panel, 482.60X180X44.00 mm
Flammability Rating UL 94 V-0
Operating Temperature -20 °C to +60 °C
Storage Temperature -40 °C to +75 °C
Relative Humidity Up to 95%, non-condensing
Ordering Information
Part Number Description Weight Packaging Unit
YPPBP02775 Draka UCCONNECT HD 1RU 24 Port Flat STP/UTP Unloaded Patch Panel, Black 481g 1 per box
YPPBP02778 Draka UCCONNECT HD 1RU 24 Port Foldable Angled STP/UTP Unloaded Patch Panel, Black 455g 1 per box





UC C500 PP S 48 1U

19-inch 1U, High Density, 48P, Empty, Cat 6A, 180°

  • High density design, reducing the rack space consumptionn
  • Supports both unshielded & shielded cabling
  • With rear cable management support
  • Used with High Density Keystone Jack UC P/N MJTF1000
Specification
Item Description
Panel SPCC, T=1.8mm, black coated
Front Cover ABS+PC, UL94V0
RJ45 Housing PBT + 15% GF 94V0
Contacts and IDC Phosphor bronze
Contact Surface Finish 50u” gold plated over contact area
IDC Surface Finish Tin plated
IDC Housing PC, UL94V0
PCB FR4 94V0
Rear Cable Management SPCC, black coated
Ordering Information
SAP IC UCÂ P/N UC Material Code Product Description P.U
TBA PPS0600 UC C500 PP S 48 1U 19” 1U, High Density, 48P, Empty, Cat 6a, 180° 1pc/box

UC C500 PP HP S 24 V2

19” ½U, High Density, 24P, Empty, Cat 6A, 180°

Specification
Item Description
Panel SPCC, T=1.8mm, black coated
Front Cover ABS+PC, UL94V0
RJ45 Housing PBT + 15% GF 94V0
Contacts and IDC Phosphor bronze
Contact Surface Finish 50u” gold plated over contact area
IDC Surface Finish Tin plated
IDC Housing PC, UL94V0
PCB FR4 94V0
Rear Cable Management SPCC, black coated

  • High density design, reducing the rack space consumption
  • Supports both unshielded & shielded cabling
  • With rear cable management support
  • Used with High Density Keystone Jack UC P/N MJTF1000
