SMPTE 311M-HD-Hybrid-Camera Cable

Hybrid-HDTV-Camera Cable

Construction
Element 1: Auxiliary Conductors AWG20 (4 x 0.6 mm2)
Conductor tinned stranded copper wires, 19 x 0.20 mm, diameter 1.0 mm
Insulation HDPE, diameter 1.5 mm
Identification 2 x black, 2 x white
Element 2: Signal Conductors AWG24 (2 x 0.22 mm2)
Conductor tinned stranded copper wires, 7 x 0.20 mm, diameter 0.6 mm
Insulation HDPE, diameter 1.1 mm
Identification 1 x red, 1 x grey
Element 3: Fibre Optic Single Mode (2 x 9/125μ)
Mode field diameter at 1310 nm, diameter 9.5 μm ± 1 μm
Cladding diameter diameter 125 μm ± 1 μm
Concentricity error ≤ 1 μm
Coating material UV-cross-linked Acrylate, diameter 245 μm
Buffer material Thermoplastic, diameter 0.9 μm ± 0.05 μm
Identification 1 x blue, 1x yellow
Element 4: Strength Member AWG16 (1 x 1.22 mm2)
Conductor galvanized steel wires, diameter 1.6 mm
Insulation HDPE, diameter 2.1 mm
Identification 1 x white
Cable lay up
Stranding Core: 1 x Element 4, diameter 2.1 mm
Layer: 4 x Element 1 + 2 x Element 2 + 2 x Element 3 and in the
outer interstices 4 x fibrillated Polypropylene as needed for
roundness, diameter 5.2 mm
Sequence according to the above drawing
Wrapping 1 x non-woven fabric tape, diameter 5.4 mm
Screen Copper wire braid, tinned 95% opt. coverage, diameter 5.9 mm
Sheath PUR or LSZH, diameter 9.2 mm
black, RAL 9005
Weight Nom. 115 kg/km
Tensile force N Nom. 800
Mechanical Properties at 20°C
Temperature range PUR (LSZH) during operation – 40° C to + 70° C ( -25°C to +70°C)
Max. humidity 95 %

Application

  • TThis Hybrid HD Camera Cable 2SM 9/125 + 4 x AWG20 + 2 x AWG24 acc. to SMPTE 311M-Standard contains Single-Mode Optical Fibres, Auxiliary- and Signal Conductors. It is used in professional video productions for
    simultaneous transmission of energy, video, audio and control signals and is intended to interconnect Camera Units and Base Stations in conjunction with the Connector Interface Standard. It is suitable for all new digital camera systems of well-known manufacturers.

Standards

  • SMPTE 311M

Fire Rating

  • IEC 60332-1, IEC 60754-2, IEC 61034
Electrical Properties at 20°C
Auxiliary Conductors AWG20 (4 x 0.6 mm2)
DC resistance ≤ 35.3 Ω/km
Loop resistance ≤ 43 Ω/km
Insulation resistance ≥ 104 MΩ*km
Test voltage 1750 VAC rms
Operating voltage ≤ 300 VAC rms
Signal Conductors AWG24 (2 x 0.22 mm2)
DC resistance ≤ 97.5 Ω/km
Loop resistance ≤ 184 Ω/km
Insulation resistance – ≥ 104 MΩ*km
Test voltage – 1750 VAC rms
Operating voltage – ≤ 300 VAC rms
Overall screen
DC resistance – ≤ 20 Ω/km
Optical Properties
Fibre Optic Single Mode (2 x 9/125μ)
Cut-off wavelength 1100 – 1350 nm
Attenuation at 1310 nm 0.5 dB
Dispersion at 1310 nm 3.5 ps/nm*km
Ordering Information
P/N Product Description P.U
1002458 CT2987000 glossy SMPTE 311M Hybrid Camera Cable, Hybrid-HDTV-Camera Cable, SMPTE 311M-HD-Hybrid-Camera Cable 1000m/drum
1008069 CT2987002 dull SMPTE 311M Hybrid Camera Cable, Hybrid-HDTV-Camera Cable, SMPTE 311M-HD-Hybrid-Camera Cable 1000m/drum
1018337 CT7687000 SMPTE 311M Hybrid Camera Cable LSZH, Hybrid-HDTV-Camera Cable, SMPTE 311M-HD-Hybrid-Camera Cable 1000m/drum

Triax Cables

Triaxial Camera Cables

Construction
Inner conductor solid copper wire, silvered or stranded copper wires, silvered
Insulation Foam-PE
1st outer conductor copper braid, thick silvered
2nd outer conductor copper braid, bare
Sheath PVC, PU (standard or reinforced type) or LSZH
red, RAL 3000 altern. black or grey
Weight 87(Triax8PU) – 250(Triax 14 PVC) mm
Tensile force N 85(Triax8PU) – 550(Triax 14 PVC)
Dimensions
Triax 8 Triax 11, Triax 11/1 AtteTriax 14ation
Inner conductor copper wire, silvered Ø 1.0 mm Ø 1.4 mm
stranded copper wires, silvered Ø 2.2 mm
Insulation foam-PE Ø 4.5 mm Ø 6.5 mm Ø 9.7 mm
Inner screen copper braid, silvered Ø 5.1 mm Ø 7.1 mm Ø 10.5 mm
Insulation PE Ø 6.6 mm Ø 8.6 mm Ø 11.9 mm
Outer screen copper braid, bare Ø 7.2 mm Ø 9.2 mm Ø 12.7 mm
Sheath red, RAL 3000 Ø 8.4 mm Ø 10.9 mm Ø 14.5 mm
reinforced, sign/1 Ø 8.9 mm Ø 12.2 mm

Application

  • Triaxial camera cables are used in professional studio applications for simultaneous transmission of energy and multiplex image signals between camera head and control system for SDI and HD-SD. They are available as different types optimized for use inside studios and outdoor application.
Electrical properties: Triax 8 at 20°C
Characteristic impedance 75 Ω ± 3 %
Mutual capacitance 800 Hz 54 pF/m
DC resistance inner conductor 25 Ω/km
inner screen 12 Ω/km
outer screen 10 Ω/km
Insulation resistance inner conductor/inner screen ≥ 104 MΩ*km
inner screen/outer screen ≥ 103 MΩ*km
Max. operating voltage 300 V
Screening factor 30 – 1000 MHz ≥ 75 dB
Electrical properties: Triax 11, Triax 11/1 at 20°C
Characteristic impedance 75 Ω ± 3 %
Mutual capacitance 800 Hz 54 pF/m
DC resistance inner conductor 13 Ω/km
inner screen 10 Ω/km
outer screen 8 Ω/km
Insulation resistance inner conductor/inner screen ≥ 104 MΩ*km
inner screen/outer screen ≥ 103 MΩ*km
Max. operating voltage 400 V
Screening factor 30 – 1000 MHz ≥ 75 dB
Electrical properties: Triax 14
Characteristic impedance 75 Ω ± 3 %
Mutual capacitance 800 Hz 54 pF/m
DC resistance inner conductor 6 Ω/km
inner screen 6 Ω/km
outer screen 4 Ω/km
Insulation resistance inner conductor/inner screen ≥ 104 MΩ*km
Electrical Properties: Triax 8 at 20°C
Attenuation (dB/100m) Return loss (dB)
Frequency (MHz) Frequency (MHz)
1 0.6 1 – 100 1 – 100
10 2.2 100 – 300 100 – 300
20 3.2
40 4.6
50 5.1
60 5.6
100 7.5
300 13.8
Electrical Data: Triax 11, Triax 11/1 at 20°C
Attenuation (dB/100m) Return loss (dB)
Frequency (MHz) Frequency (MHz)
1 0.5 1 – 100 1 – 100
10 1.6 100 – 300 100 – 300
20 2.3
40 3.3
50 3.7
60 4.1
100 5.4
300 10.3
Electrical Data: Triax 14 at 20°C
Attenuation (dB/100m) Return loss (dB)
Frequency (MHz) Frequency (MHz)
1 0.4 1 – 100 1 – 100
10 1.1 100 – 300 100 – 300
20 1.6
40 2.3
50 2.6
60 2.8
100 3.8
300 7.7
Ordering Information
P/N Product Description P.U
1002223 CT2765700 Triax 8 PVC red, Triaxial Camera Cables, Triax Cables 1000m/drum
1017271 CT2765702 Triax 8 PVC black, Triaxial Camera Cables, Triax Cables 1000m/drum
1002221 CT2765500 Triax 8 PU, Triaxial Camera Cables, Triax Cables 1000m/drum
1002266 CT2853201 Triax 8 LSZH, Triaxial Camera Cables, Triax Cables 1000m/drum
1002268 CT2853203 Triax 8 LSZH reinforced, Triaxial Camera Cables, Triax Cables 1000m/drum
1002226 CT2766400 Triax 11 PVC, Triaxial Camera Cables, Triax Cables 1000m/drum
1002229 CT2766404 Triax 11 PE black, Triaxial Camera Cables, Triax Cables 1000m/drum
1002233 CT2766600 Triax 11 PU red, Triaxial Camera Cables, Triax Cables 1000m/drum
1002234 CT2766601 Triax 11 PU black, Triaxial Camera Cables, Triax Cables 1000m/drum
1002243 CT2767101 Triax 11/1 PU reinforced, Triaxial Camera Cables, Triax Cables 1000m/drum
1002264 CT2850801 Triax 11 LSZH, Triaxial Camera Cables, Triax Cables 1000m/drum
1002236 CT2766700 Triax 14 PVC, Triaxial Camera Cables, Triax Cables 1000m/drum
1002239 CT2766704 Triax 14 PE, Triaxial Camera Cables, Triax Cables 1000m/drum
1002273 CT7666700 Triax 14 LSZH, Triaxial Camera Cables, Triax Cables 1000m/drum
1002240 CT2767000 Triax 14 PU, Triaxial Camera Cables, Triax Cables 1000m/drum

XLR PRO FLEX analogue / digital

Application

  • Audio cables are used in professional broadcasting systems for the
    transmission of analogue and digital audio signals.

Standards

  • AES/EBU and analogue Audio
Construction
Conductor stranded copper wires, bare, diameter 0.60 mm
Insulation Foam-PE + skin-layer, diameter 1.5 mm
Identification a – core: white; b – core: blue
Stranding two cores twisted to the bundle + cotton filler, diameter 3.0 mm
Screen spiralled wires, CU bare, diameter 3.2 mm
Sheath DMC FLEX PVC, diameter 6.5 mm ± 0.2 mm
black, RAL 9005
Outer Diameter Nom. 6.5 mm
Weight Nom. 50 kg/km
Tensile force N 55
Mechanical Properties
Minimum bending radius without load ≥ 4 x D ( D= outer diameter )
with load ≥ 8 x D ( D= outer diameter )
Temperature range during operation – 30° C to + 70° C
during installation – 5° C to + 50° C
Electrical Properties at 20°C
Loop resistanceC ≤ 175 Ω/km
Insulation resistance 500 V ≥ 2000 MΩ*km
Mutual capacitance 800 Hz nom. 45 nF/km
Velocity ratio ca .78%
Test voltage (DC. 1 min) core/core and 1000 V
core/screen
Characteristic impedance 6 MHz 110 Ω ± 10 %
Electrical Data at 20°C
Frequency (MHz) Attenuation (dB/100m)
0.015 0.3
1.0 1.5
4.0 3.8
10.0 6.0
20.0 8.5
Ordering Information
P/N Product Description P.U
1018270 1x2x0.22², XLR PRO FLEX analogue / digital 1000m/drum

AC10 SS 26/7 x pairs

Audio Cable

Construction
Conductor ø AWG26/7 mm
stranded copper wires, bare
0.48 mm (cross section 0.14 mm² )
Insulation ø 1.2 mm Foam-skin-PE
Pair stranding ø 2.4 mm two cores twisted to the pair
Pair identification a – core: white, b – core: blue
(the above colours in regular intervals)
Pair screen ø 2.5 mmAl-PET-foil, Aluminum inside
+ stranded copper drain wires, tinned
Pair insulation of the one pair cable PET-foil
Pair sheath of the multi-pair cables FRNC, flame retardant
Colour and identification n pairs twisted in layers
Overall screen Al–PET-foil + copper braid, tinned
Sheath LSZH-C
Sheath colour grey, RAL 7001
Outer Diameter Nom. 4.2(1pair) – 19.5(24pair) mm
Weight Nom. 23(1pair) – 395(24pair) kg/km
Tensile force N Nom. 50(1pair) – 1325(24pair)
Mechanical Properties at 20°C
Bending radius during installation with load ≥ 10 x cable diameter
without load ≥ 15 x cable diameter
Temperature range – 30 °C up to + 70 °C
Fire propagation VDE 0472 part 804 class B or C and
IEC 332-1 or 332-3 cat. CF
Electrical Properties at 20°C
DC loop resistance (at 20 ± 5 °C) ≤ 288 Ω/km
Insulation resistance (at 20 ± 5 °C and 500 V) ≥ 2000 MΩxkm
Mutual capacitance at 800 Hz nom. 45 nF/km
Capacitance unbalance (pair to ground) ≤ 1200 pF/km
Velocity ratio approx. 78 %
Test voltage (50 Hz, 1 min) 700 V rms
core/core and core/screen
Characteristic impedance 6 MHz : 110 Ω ± 10%
Transfer impedance up to 10 MHz ≤ 10 mΩ/m
up to 100 MHz ≤ 100 mΩ/m

Application

  • Audio cables are used in professional broadcasting systems for the transmission of analog and digital audio signals.

Standards

  • Basing upon ARD-Specification and acc.
    to AES/EBU-Recommendation.)

Fire Rating

  • VDE 0472 part 804 class B or C and IEC 332-1 or 332-3 cat. CF
Electrical Data at 20°C
Near-end crosstalk (cable length: 300 m) Attenuation
Frequency (MHz) Draka Multimedia Cable – Measurement values Draka Multimedia Cable – Measurement values
neighboured pairs [dB] unneighboured pairs [dB] [dB/100m]
0.015 85 85 0.55
1.0 90 85 3.0
4.0 90 90 5.3
10.0 90 90 8.1
20.0 90 85 11.5
Ordering Information
P/N Product Description P.U
1002123 CT7651411 Li-02YSCH, 1x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002147 CT7652410 Li-02YS(St)CH, 2x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002125 CT7651511 Li-02YS(St)CH, 3x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002129 CT7651613 Li-02YS(St)CH, 4x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002131 CT7651710 Li-02YS(St)CH, 6x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002142 CT7652111 Li-02YS(St)CH, 8x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002134 CT7651811 Li-02YS(St)CH, 10x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002137 CT7651911 Li-02YS(St)CH, 12x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1002140 CT7652011 Li-02YS(St)CH, 16x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
CT… Li-02YS(St)CH, 20x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum
1007975 CT7652311 Li-02YS(St)CH, 24x2x0.48L PiMF, Audio Cable, AC10 SS 26/7 x pairs 1000m/drum

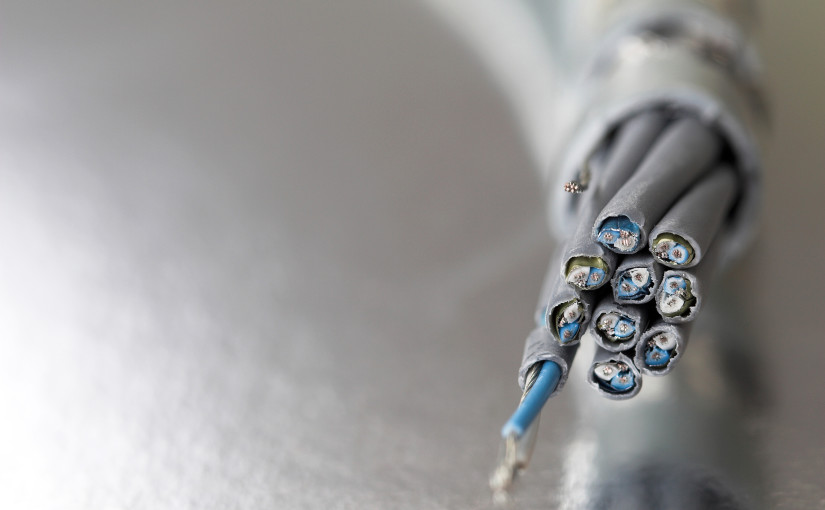

AC10 SS 23/1 nxP

Audio Cable

Application

  • Audio cables are used in professional broadcasting systems for the transmission of analog and digital audio signals.

Standards

  • Basing upon ARD-Specification and acc.
    to AES/EBU-Recommendation.)

Fire Rating

  • VDE 0472 part 804 class B or C and IEC 332-1 or 332-3 cat. CF
Construction
Conductor ø AWG23/1
solid copper wire, bare
0.56 mm (cross section 0.26 mm²)
Insulation ø 1.4 mm Foam-skin-PE
Pair stranding Two cores twisted to the pair
Pair identification a – core: white, b – core: blue
(the above colours in regular intervals)
Pair screen ø 2.9 mm Al-PET-foil, Aluminium outside
+ solid copper drain wire, tinned
Pair insulation of the one pair cable PET-foil
Overall screen of the one pair cable copper braid, tinned
Pair sheath of the multi-pair cables halogen free, flame retardant copolymere
Colour and identification grey RAL 7001 with number printing
Sheath halogen free, flame retardant copolymere
Sheath colour grey, RAL 7001
Outer Diameter Nom. 4.6(1pair) – 15.6(12pair) mm
Weight Nom. 27(1pair) – 320 (12pair) kg/km
Tensile force N Nom. 80(1pair) – 725(12pair)
Mechanical Properties at 20°C
Bending radius during installation with load ≥ 15 x cable diameter
without load ≥ 10 x cable diameter
Temperature range – 30 °C bis + 70 °C
Electrical Properties at 20°C
BendaDC loop resistance ≤ 165 Ω/km
Insulation resistance ≥ 2000 MΩxkm
Mutual capacitance at 800 Hz nom. 45 nF/km
Capacitance unbalance (pair to ground) ≤ 1200 pF/km
Velocity ratio approx. 78 %
Test voltage (50 Hz, 1 min) 700 V rms
core/core and core/screen
Characteristic impedance 6 MHz : 110 Ω ± 10%
Transfer impedance up to 10 MHz ≤ 10 mΩ/m
up to 100 MHz ≤ 100 mΩ/m
Nominal Transmission Characteristics at 20°C
Near-end crosstalk (cable length: 300 m) Attenuation
Frequency (MHz) Draka Multimedia Cable – Measurement values Draka Multimedia Cable – Measurement values
neighboured pairs [dB] unneighboured pairs [dB] [dB/100m]
0.015 85 95 0.33
1.0 90 90 2.45
4.0 90 90 4.2
10.0 90 90 6.3
20.0 90 90 8.6
Ordering Information
P/N Product Description P.U
1002105 CT7649010 1x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002115 CT7649710 2x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002106 CT7649110 3x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002108 CT7649210 5x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002109 CT7649310 6x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002103 CT7648710 8x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002111 CT7649410 10x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum
1002113 CT7649510 12x2x0.56 PiMF, Audio Cable, AC10 SS 23/1 nxP 1000m/drum

HD PRO 0.6/2.8 AF

HD Video Cable 75 Ω

Construction
Inner conductor solid copper wire, bare, diameter 1.0 mm
Insulation Foam-PE, diameter 4.8 mm
Outer conductor Al-PET-Al-foil under tinned copper braid, diameter 5.6 mm
Sheath LSZH, PVC, PUR diameter 7.0 mm
green, RAL 6018, blue, RAL 5015
Weight Nom. 28 kg/km
Tensile force N 60
Electrical Properties at 20°C
DC resistance Inner conductor 22 Ω/km
Outer conductor 7 Ω/km
Mutual capacitance 56 pF/m
Characteristic impedance 75 Ω ± 0.75 Ω
Velocity ratio 78 %
Screening factor ≥ 100 dB

Application

  • Video cables are primary used in closed
    circuit TV systems and in several studio
    applications for transmission of image
    signals.

Standards

  • For analogue and digital video signals
    (Composite, component, SDI, SDV, SDTI, HDTV)

Fire Rating

  • IEC 60332-1/2, IEC 60332-3, IEC 60754-2
Electrical Data at 20°C
Attenuation (dB/100m) Return loss (dB)
Frequency (MHz) Frequency (MHz)
1 1.2 50 – 300 ≥26
3 1.9 300 – 3000 ≥22
5 2.5 3000 – 3500 ≥18
10 3.5 3500 – 5000 ≥15
30 5.9
100 10.0
200 14.1
300 17.8
500 24.0
800 29.7
1000 33.2
1500 39.6
2250 50.2
3000 60.9
3500 65.8
4000 69.8
4500 74.2
5000 78.9
Ordering Information
P/N Product Description P.U
1014488 HD PRO 0.6/2.8 AF, HD Video Cable 75 Ω, HD PRO 0.6/2.8 AF 1000m/drum

1.6/7.3 AF

Video Cable 75 Ω

Application

  • Video cables are primary used in closed
    circuit TV systems and in several studio
    applications for transmission of image
    signals.

Standards

  • For analogue and digital video signals
    (Composite, Component, SDI, SDV, SDTI, HDTV)

Fire Rating

  • PVC: IEC 60332-1
  • LSZH: IEC 60332-1, IEC 61034-2, IEC 60754-1/2
  • LSZH-C: EC 60332-3 C
Construction
Inner conductor solid copper wire, bare, diameter 1.6 mm
Insulation Foam-PE, diameter 7.3 mm
Outer conductor Al-PET-Al-foil under tinned copper braid, diameter 8.2 mm
Sheath LSZH, diameter 10.3 mm
green, RAL 6018
Weight Nom. 120(PUR) – 135(LSZH) kg/km
Tensile force N 270
Electrical Properties at 20°C
DC resistance Inner conductor 9.5 Ω/km
Outer conductor 4.3 Ω/km
Mutual capacitance 56 pF/m
Characteristic impedance 75 Ω ± 0.75 Ω
Velocity ratio 78 %
Screening factor ≥ 100 dB
Electrical Data at 20°C
Attenuation (dB/100m) Return loss (dB)
Frequency (MHz) Frequency (MHz)
1 0.4 50 – 300 ≥26
3 0.7 300 – 3000 ≥22
5 0.9 3000 – 3500 ≥18
10 1.3 3500 – 5000 ≥15
30 2.2
100 3.9
200 5.3
300 7.0
500 9.2
800 11.8
1000 13.2
1500 16.9
2250 22.0
3000 26.4
3500 30.6
4000 36.1
4500 38.1
5000 41.3
Ordering Information
P/N Product Description P.U
1002202 CT2760901 1.6/7.3 AF LSZH-C gn, Video Cable 75 Ω, 1.6/7.3 AF 1000m/drum
1002197 CT2757800 1.6/7.3 AF PVC green, Video Cable 75 Ω, 1.6/7.3 AF 1000m/drum
1002461 CT2757900 1.6/7.3 AF PUR green, Video Cable 75 Ω, 1.6/7.3 AF 1000m/drum
1002462 CT2757902 1.6/7.3 AF PUR blue, Video Cable 75 Ω, 1.6/7.3 AF 1000m/drum
