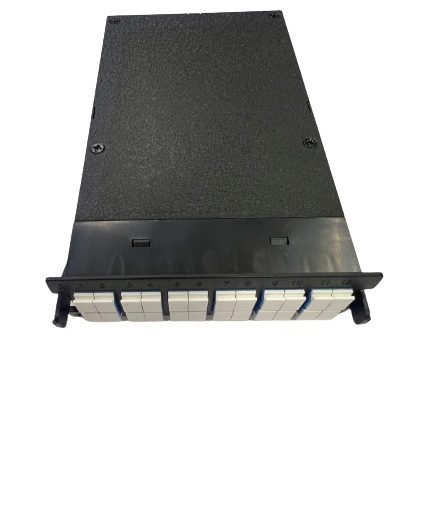

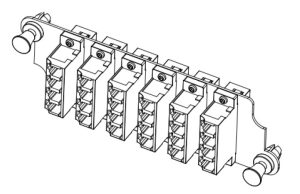

UCCONNECT® 6-Port Auto Shuttle LC Quadruplex Front Panel

Features

  • SPCC Steel (Cold Rolled Steel Plate), Thickness 1.2mm
  • Finger Print Resistance
  • Available in pre-assembled form
  • Compatible with UC9515 Patch Panel
  • Coupler Sleeve: Zirconia



Ordering Information
UC P/N Product Description P.U Weight (g)

PPA9524-6LCSM Draka UCCONNECT® UC9500 1 Slot 6-Port LC Quadruplex Front Panel with 6 SM Auto Shuttle Adaptors 6 pcs per box 52
PPA9524-6LCM4 Draka UCCONNECT® UC9500 1 Slot 6-Port LC Quadruplex Front Panel with 6 OM4 Auto Shuttle Adaptors 6 pcs per box 52




Security & Comms Cable, SXACS Series

Shielded, LSZH





Application

  • Security, Intercom, Broadcast, Sound, Audio Systems

Flame rating

  • LSZH IEC 60332-1
Construction

Conductor

Grade A Bare Copper, Stranded

Operating Voltage

300V

Insulation

XLPE

Insulation colour

1 - Black, 2 - Red, 3 - White, 4 - Green

1st Screen

100% Overall Aluminum Foil Screen

Sheath

LSZH with Ripcord

Sheath colour

Grey , Red

Rated temperature

Up to 75°C
Cable Dimension
Conductor Size No of Pairs OD (mm)
12 AWG 1 Pair 7.6
  2 Pairs 11.3
14 AWG 1 Pair 6.6
  2 Pairs 9.7
16 AWG 1 Pair 5.2
  2 Pairs 7.6
18 AWG 1 Pair 4.6
  2 Pairs 6.6
20 AWG 1 Pair 4.2
  2 Pairs 6.1
22 AWG 1 Pair 3.8
  2 Pairs 5.3

Ordering Information
SXACS Series part numbers are made up using the table below.
The part number starts with SXACS to denote that it is a SXACS cable.
The following number shows the number of pairs and the last 2 numbers signifies the AWG.
Any letter behind would describe the sheath type and colour.

Example of a SXACS part number-SXACS1P22LRD-3H
The above example describes SXACS cable with 1 pairing, 22 AWG. Sheath type LSZH.



SXACS PAIRING AWG SHEATH Colour Drum Length
SXACS X XX X X – X
  1P – 1 Pair
2P – 2 Pairs		 12 – 12 AWG
14 – 14 AWG
16 – 16 AWG
18 – 18 AWG
20 – 20 AWG
22 – 22 AWG
L- LSZH

GY-Grey
RD- Red



-3H : 305m

-5H : 500m

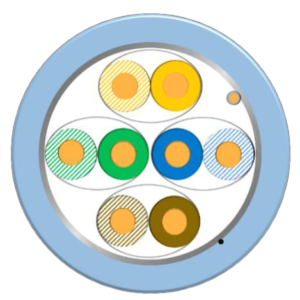

Draka UC500 Cat.6a F/FTP 23AWG LSZH

Standard, Solid, 23AWG, Screened

Application

  • Generic cabling systems
  • Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
  • IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10G Base-T
  • IEEE 802.5 16 MB; ISDN; TPDDI; ATM
  • IEEE 802.3af (PoE); IEEE 802.3a(PoE+); IEEE802.3bt (PoE++)

Standards

  • ANSI TIA / EIA 568.2-D
  • ISO/IEC 11801-1/2
  • IEC 61156-5
  • EN 50173-1
  • EN 50288-10-1

Flame Rating

  • LSZH: IEC 60332-1-2 ; IEC 60332-3-22; IEC 60754-1&2; IEC 61034-2
Construction
Conductor Bare copper wire Nom. ≥ ∅ 0.546 mm (AWG23)
Insulation Foam skin PE
Sheath LSZH
Sheath colour BLUE or WHITE
Pair Screen High Performance Individual Pair Screen
Overall Screen Aluminum Laminated Foil, Tinned Copper drain wire (AWG26)
Outer Diameter Nom. 7.5 mm
Weight Nom. 52 kg /km
Mechanical properties
Minimum bending radius without load ≥ 4 x O.D
Minimum bending radius with load ≥ 8 x O.D
Temperature range during operation  -20°C to +60°C
Temperature range during installation  0°C to +50°C
Electrical properties at 20°C
DC Resistance ≤ 9.38 Ω / 100m
DC Loop Resistance ≤ 187.6 Ω /km
DC Resistance unbalance ≤4 %
Mutual Capacitance at 1 kHz ≤ 5.6 nF /100m
Capacitance unbalance (pair to ground) ≤ 330 pF /100m
Characteristic impedance 1- 100 MHz 100 ± 15 Ω
Nominal velocity of propagation Nom. 75 %
Propagation delay (@250MHz) ≤  536 ns /100m
Delay skew ≤ 45 ns /100m
Ordering Information
SAP IC UC P/N Product Description P.U
60094736  84075WH-5H Draka UCDATA CATEGORY CABLE UC500 CAT.6A FFTP 4PAIR 23AWG LSZH WHITE IEC60332-1 500m/reel

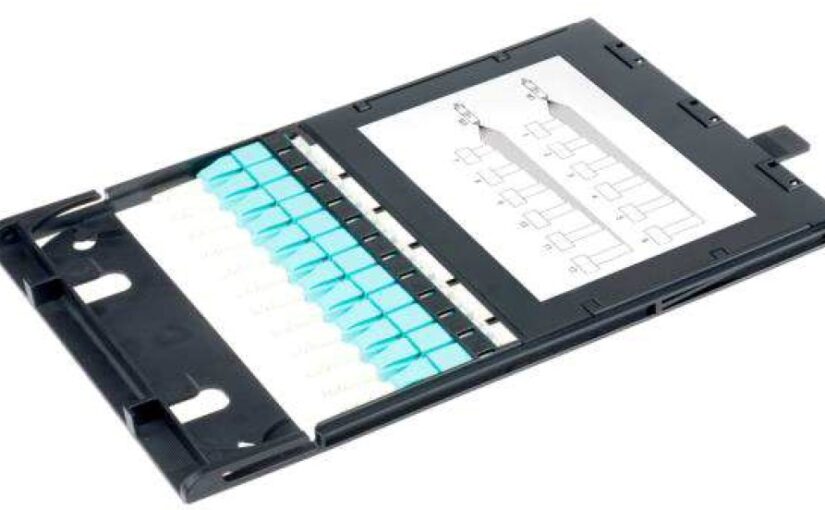

UCCONNECT® Ultra High Density MTP®/MPO Module

Ultra High Density MTP®/MPO Module

Features

  • Available in Duplex LC and Quad LC
  • Available in G657A, OM3 and OM4
  • Utilizes bend-insensitive fibre
  • Quick release mechanism
  • Type “P” is Draka UC defacto, Type A and B are available
  • Utilized with UC9600 1U/2U/4U Patch Panel

Application

UC9600 are used to house and organize the trunk fiber optic cable, compatible with MPO-LC cassettes. Easy access from front and rear, panels has 6 slots, which can install 6 module cassettes. It is ideal for fast and reliable patch solutions within main, horizontal and equipment distribution areas.

Construction
Standard ANSI/TIA-568-C.3,ISO/IEC 11801, RoHS
Material Housing ABS
Module Housing Colour Black
Front Adaptor Duplex or Quad LC with dust cap
Rear Adaptor MTP®/MPO with dust cap
Assemblies Pre_installed male MTP®/MPO to fanout LC assemblies inside module

Performance
  Insertion Loss Return Loss (per fiber)
  (MTP®/MPO+LC)
1x8F/1x12F/1x24F
Single Mode 0.75dB (Standard)
0.50dB (Low Loss)		 55dB
Multi Mode 0.50dB (Standard)
0.35dB (Low Loss)		 26dB
Ordering Information
UC P/N Product Description P.U Weight (g)
Type “P”
PPMLPM39652D-P24 Draka UCCONNECT® UC9600 Series UHD Low Loss 1x MPO/UPC-24(M) to LC/UPC(D) Module MM OM4 Type P Violet 1 set/box 150
PPMLPM29662D-P24 Draka UCCONNECT® UC9600 Series UHD Low Loss 2x MPO/UPC-12(M) to LC/UPC(D) Module MM OM3 Type P Aqua 1 set/box 150

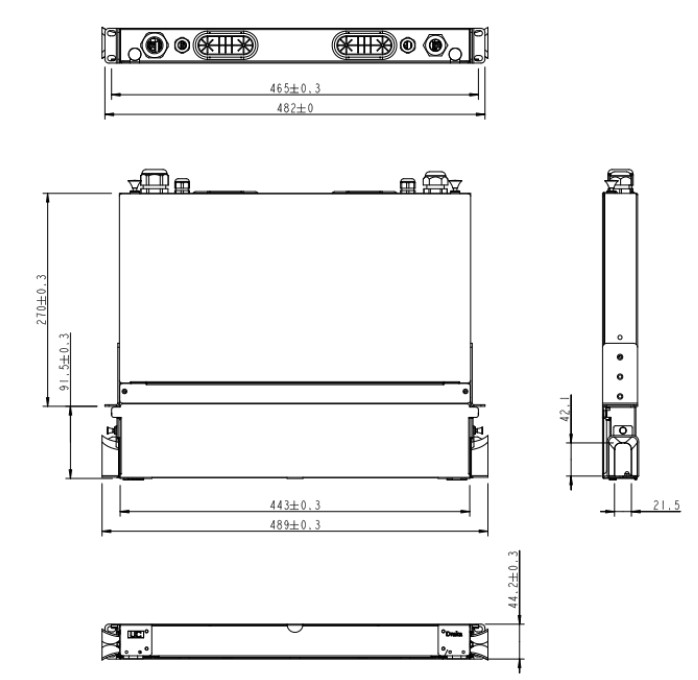

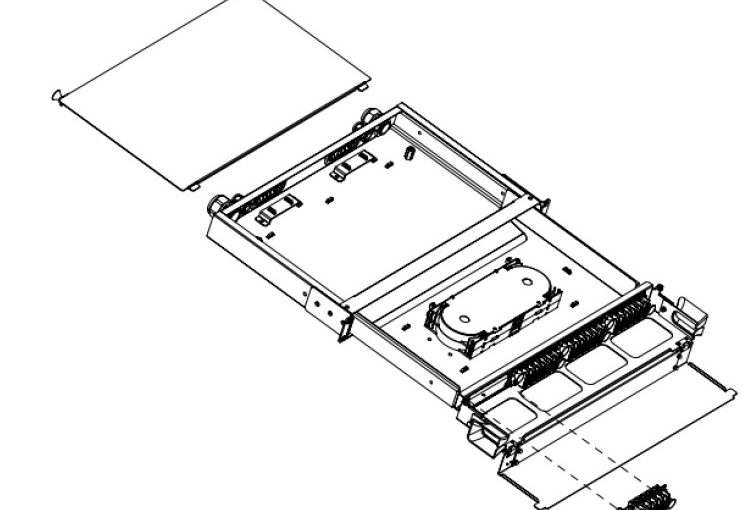

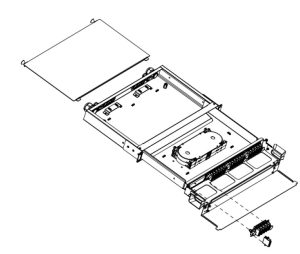

UCCONNECT® UC 1RU Patch Panel 9515, Drawer Type,Empty

UC9515 1RU Drawer Type Patch Panel, Empty

Features

  • Light Weight
  • Drawer for easy installation and maintenance
  • Highly durable
  • Easy fix-up to 4 module cassettes and 4 adaptor panels
  • Abrasion Resistance
  • Up to 96 fibres



Application

UC9515 are used to house and organize the trunk fiber optic cable, compatible with MPO-LC Cassettes, fiber adaptor panels and patch cords. Sliding version has better easy access from front and rear, panels has 4 slots, which can install 4 adaptor panels and 4 module cassettes, including LC adaptor.


Construction
Material SPCC (Cold Rolled Steel Plate)
Matrix Thickness 1.2mm
Cover Thickness 1.2mm
Dimension H x W x D = 1RU x 482mm x 361mm
Surface Finishing Powder Coating
Weight   Approximate 4kg (empty)

Ordering Information
UC P/N Product Description P.U Weight (g)
PP9515 Draka UCCONNECT® Fibre Optic Patch Panel Drawer Type 19″ 1U
4 Slot Empty Black UC9500 Series 		 1pc 4000

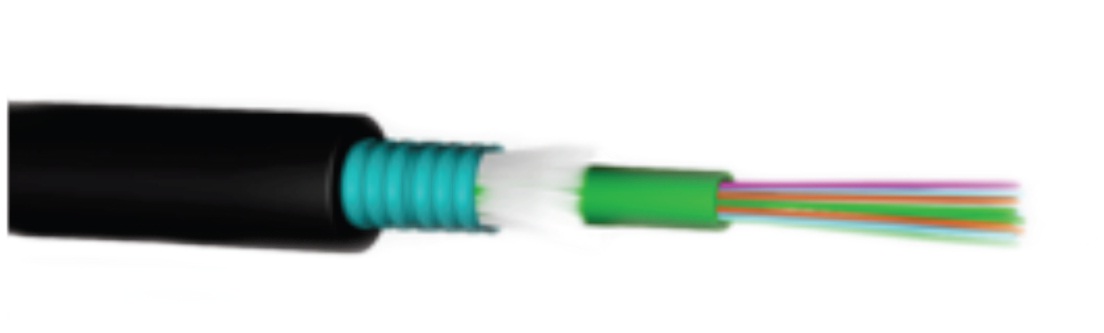

UCFIBRE™® UT SERIES

2-12 Cores, Light Armoured, Uni-tube Cable, PE Sheath

Features

  • Unitube: Thermoplastic material, containing up to 12 fibres and filled with a
    suitable water tightness compound
  • Peripheral Strength Elements: Aramid yarns
  • Armour: Corrugated steel tape
  • Outer Sheath: PE
  • Suitable for Duct Buried or Outdoor Installation

Standards

  • ANSI/TIA-568-C.3, ISO/IEC 11801, IEC 60794-3-10
Main characteristics
Test Standard Value Sanction*
Maximum Tension at
installation (short term)		 IEC 60794-1-2-E1 1200N  ΔI /l fibre ≤ 0.6%, Δα reversible
Maximum Tension at
installation (Long term)		 IEC 60794-1-2-E1 800 N   ΔI /l fibre ≤ 0.2%, Δα reversible
Crush (short/long term) IEC 60794-1-2-E3 1500N /100mm   Δα ≤ 0.3 dB (MM) , Δα ≤ 0.1 dB (SM);        cable integrity
Temperature range IEC 60794-1-2-F1 -20°C -> +70°C

*values for single-mode fibres, all optical measurements performed at 1550 nm
*values for multi-mode fibres, all optical measurements performed at 1300 nm


Overview

UT Series is excellent robust
installations that enables flexible
bending radius but till provide
adequate mechanical protection in
exposed installation environment,
ie outside buildings facilities.

Additional Options

  • UV Resistance
Technical data
No. of Fibres   2, 4, 6, 8, 12
Design   1×12
Loose Tube / Filler – ∅ mm 3.0 nominal
Sheath thickness mm 1.5 nominal
Cable Diameter mm 8.1± 0.5
Cable Weight kg / km 80
Max installation tension N 1200
Min. bending radius mm
Without Tension
10 x Cable ø		 Under Maximum Tension
20 x Cable ø
Temperature range °C Installation
-10°C -> +60°C;		 Transport. & Storage
-40°C -> +70°C ;		 Operation
-20°C -> +70°C
Flame Retardant
NA
Ordering Information
UCFIBRE UT SERIES FO Cable part numbers are made up using the table below.The part number always starts with the letters UT to denote that it is a UCFIBRE UT SERIES FO Cable. This is followed by 3 numbers which symbolizes the core quantity and then 2 letters to denote the fibre type.Example of a UCFIBRE UT SERIES FO Cable part number:



UT006M2

The above example describes an OM2 (50um, Orange Sheath) UCFIBRE UT SERIES FO Cable, with 6 cores.




UTM SERIES CORE QUANTITY
FIBRE TYPE
UT XXX XX
  002 : 2 cores
004 : 4 cores
006 : 6 cores		 SM – SINGEMODE, G652D, 9um (Yellow sheath)
M1 – OM1, 62.5um (Orange sheath)
M2 – OM2, 50um (orange sheath)
M3 – OM3, 50um (aqua sheath)
M4 – OM4, 50um (aqua sheath)




UC CONNECT® CATEGORY 6A Field Termination Plug, Straight

Overview

  • Field Termination Plug compatible with UCCONNECT® system
  • Category 6A/EA hardware compliant performance.
  • RoHS & MPTL Compliant
GENERAL SPECIFICATIONS
Item Description
Termination Capability 22-26AWG solid wire , 23-27AWG stranded wire
Supporting Ins. Dia. 1.0 ~ 1.65 mm
Supporting Cable Type Shielded/Unshielded Cable
Supporting Cable Diameter  STP : 6~9.0mm ; UTP : 5.5~8.5mm
PoE PoE+ and 4PPoE
Current Rating  1.5A
MECHANICAL PROPERTIES
Item Description
Plug Housing Zinc Alloy (STP)/PC FR (UTP)
Plug Pins Phosphor bronze with 50µ” gold plating
IDC Durability 750 mechanical Cycles
Protection Category IP20

Ordering Information
Part Number Description Weight Packaging Unit
FTPSA00 Draka UCCONNECT CAT6A STP Field Termination Plug, Straight 16.1g 1 pc per bag
FTPUA00 Draka UCCONNECT CAT6A UTP Field Termination Plug, Straight 13.1g 1 pc per bag

Draka UC500 Cat.6a U/UTP 23AWG LSFRZH-3A

Premium, Solid, 23AWG, Unscreened

Application

  • Generic cabling systems
  • Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
  • IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10G Base-T
  • IEEE 802.5 16 MB; ISDN; TPDDI; ATM
  • IEEE 802.3af (PoE); IEEE 802.3a(PoE+); IEEE802.3bt (PoE++)

Standards

  • ANSI TIA / EIA 568.2-D
  • ISO/IEC 11801-1/2
  • IEC 61156-5
  • EN 50173-1
  • EN 50288-10-1

Flame Rating

  • LSZH: IEC 60332-1-2; IEC 60332-3-22; IEC 60754-1&2; IEC 61034-2
Construction
Conductor Bare copper wire ∅ 0.56 mm (AWG23)
Insulation PE/Foam PE , Nom. ∅ 1.15 mm
Sheath LSZH
Sheath colour BLUE
Overall Screen PE Mylar and Single PET AL-Foil (without Drain Wire)
Outer Diameter Nom. 7.3 mm
Weight Nom. 56 kg /km
Mechanical properties
Minimum bending radius without load ≥ 4 x O.D
Minimum bending radius with load ≥ 8 x O.D
Temperature range during Operation  -20°C to +60°C
Temperature range during Installation  0°C to +50°C
Maximum Pulling Force during Installation  110N
Electrical properties at 20°C
DC Resistance ≤ 9.38 Ω / 100m
DC Loop Resistance ≤ 187.6 Ω /km
DC Resistance unbalance ≤ 4 %
Mutual Capacitance at 1 kHz 5.6 nF /100m
Capacitance unbalance (pair to ground) ≤ 330 pF /100m
Characteristic impedance 1- 100 MHz 100 ± 15 Ω
Nominal velocity of propagation Nom. 75 %
Propagation delay (@250MHz) ≤  536 ns /100m
Delay skew ≤ 45 ns /100m
Ordering Information
SAP IC UC P/N Product Description P.U
TBC  80045BL-5H Draka UCDATA CATEGORY CABLE UC500 CAT.6A UUTP 4PAIR 23AWG LSFRZH-3A BLUE 500m/reel

Draka UC500 Cat.6a F/FTP 23AWG LSFRZH-3A

Premium, Solid, 23AWG, Screened

Application

  • Generic cabling systems
  • Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
  • IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10G Base-T
  • IEEE 802.5 16 MB; ISDN; TPDDI; ATM
  • IEEE 802.3af (PoE); IEEE 802.3a(PoE+); IEEE802.3bt (PoE++)

Standards

  • ANSI TIA / EIA 568.2-D
  • ISO/IEC 11801-1/2
  • IEC 61156-5
  • EN 50173-1
  • EN 50288-10-1

Flame Rating

  • LSZH: IEC 60332-1-2; IEC 60332-3-22; IEC 60754-1&2; IEC 61034-2
Construction
Conductor Bare copper wire ∅ 0.55 mm (AWG23)
Insulation Foam skin PE , Nom. ∅ 1.25 mm
Sheath LSZH
Sheath colour BLUE
Pair Screen High Performance Individual Pair Screen
Overall Screen Aluminum Laminated Foil, Tinned Copper drain wire (AWG26)
Outer Diameter Nom. 7.5 mm
Weight Nom. 52 kg /km
Mechanical properties
Minimum bending radius without load ≥ 4 x O.D
Minimum bending radius with load ≥ 8 x O.D
Temperature range during operation  -20°C to +60°C
Temperature range during installation  0°C to +50°C
Electrical properties at 20°C
DC Resistance ≤ 9.38 Ω / 100m
DC Loop Resistance ≤ 187.6 Ω /km
DC Resistance unbalance ≤4 %
Mutual Capacitance at 1 kHz 5.6 nF /100m
Capacitance unbalance (pair to ground) ≤ 330 pF /100m
Characteristic impedance 1- 100 MHz 100 ± 15 Ω
Nominal velocity of propagation Nom. 75 %
Propagation delay (@250MHz) ≤  536 ns /100m
Delay skew ≤ 45 ns /100m
Ordering Information
SAP IC UC P/N Product Description P.U
TBC  84045BL-5H Draka UCDATA CATEGORY CABLE UC500 CAT.6A FFTP 4PAIR 23AWG LSFRZH-3A BLUE 500m/reel

UCFIBRE™® LTFIM SERIES

2-144 Cores, LTFIM Series Fire Resistant Non-Metallic LSZH Cable

Features

  • Central strength member: FRP with PE coating when needed
  • Tube:thermoplastic material, containing up to 12 optical fibres and filled with a suitable water tightness compound
  • Stranding:The required numbers of elements (tubes or fillers) are SZ stranded
    around the central strength member
  • Longitudinal Water Tightness:water-blocking tape & yarns (dry core) and
    fire resistant layer
  • Outer Sheath: LSZH. Flame Retardant to IEC 60332-3C
  • Suitable installation is indoor and indoor/outdoor in and between public buildings, in tunnels, metro lines and other places where need very high degree of fire safety and support for critical communication, UV resistant.
Main characteristics
Test Standard Value Sanction*
Max. installation tension IEC 60794-1-2-E1 2700N fibre strain < 0.6%,
± reversible
Crush(short term) IEC 60794-1-2-E3 1500 N / 100mm < 0.3 dB(MM), 0.1 dB(SM)
Temperature range IEC 60794-1-2-F1 -40 -> +70°C < 0.3 dB/km(MM),
0.1 dB/km(SM)
Water Penetration IEC 60794-1-2-F5C sample=3m,
water=1m		 No water leakage after 24 hour

*values for single-mode fibres, all optical measurements performed at 1550 nm
*values for multi-mode fibres, all optical measurements performed at 1300 nm

Overview

LTFIM Series offers cost efficience non-metallic LSZH cable. LTFIM Series is able to be deployed indoor/outdoor in and between public buildings, in tunnels, metro lines and other places where need very high degree of fire safety and support for critical communication

Fire Resistance

  • BS 6387 (180 min. at 950°C)
  • IEC 60331-25 (90 min. at 750°C)

Flame Retardant

  • IEC 60332-1
  • IEC 60332-3C
Technical data
No. of Fibres 2~72 96 144
Design (Elements x Fibres per Tube) 6×12 8×12 12×12
Loose Tube / Filler – OD mm 2.3 2.3 2.3
CSM/sheath diameter mm 3.0 3.0/4.8 3.0/8.4
Outer sheath thickness mm 2.0 nominal 2.0 nominal 2.0 nominal
Cable Diameter mm 13.0 nominal 14.8 nominal 18.4 nominal
Cable Weight kg / km 186 237 364
Max installation tension N 2700
Min. bending radius mm
Without Tension:
10 x Cable OD		 Under Maximum Tension:
20 x Cable OD
Temperature range °C Installation:
-10°C -> +60°C		 Transport. & Storage:
-40°C -> +70°C		 Operation:
-40°C -> +70°C
Flame Retardant IEC 60332-3-24
Fire Resistance BS 6387 & IEC60331-25
Ordering Information
UCFIBRE™® LTFIM SERIES FO Cable part numbers are made up using the table below.The part number always starts with the letters LTFIM to denote that it is a UCFIBRE LTFIM SERIES FO Cable. This is followed by 3 numbers which symbolises the core quantity and then 2 letters to denote the fibre type. Example of a UCFIBRE LTFIM SERIES FO Cable part number:

LTFIM040M2

The above example describes an OM2 (50um, Orange Sheath) UCFIBRE LTFIM SERIES FO Cable, with 40 cores.

LTFIM SERIES CORE QUANTITY
FIBRE TYPE
LTFIM XXX XX
012 – 12 CORES024 – 24 CORES036 – 36 CORES

048 – 48 CORES

096 – 96 CORES

 SM – SINGLEMODE, G652D, 9um (yellow sheath)M1 – OM1, 62.5um (orange sheath)M2 – OM2, 50um (orange sheath)

M3 – OM3, 50um (aqua sheath)

M4 – OM4, 50um (aqua sheath)
